Repair Procedures: Inspection: Notes

  1. Check point (Warning indicator)
    No. Re Symbol Name Signal Input Signal Control (Unit/Sensor) Check Point
    1   Turn Left C-CAN
    2   Turn Right C-CAN BCM 1. CAN line failure
    3   Front Fog C-CAN BCM 1. CAN line failure
    4   High Beam C-CAN BCM 1. CAN line failure
    5   Cruise C-CAN SCC
    EMS    		 1. CAN line failure
    6   SET C-CAN EMS 1. CAN line failure
    7   Tail Lamp C-CAN BCM 1. CAN line failure
    8   Seat Belt C-CAN BCM 1. CAN line failure
    9   PUB C-CAN Sable
    Sabre    		 1. CAN line failure
    10   Air Bag C-CAN ACT 1. CAN line failure
    11   Door Open C-CAN BCM 1. CAN line failure
    12   High Temperature C-CAN EMS 1. CAN line failure
    13   Immobilizer C-CAN SMK 1. CAN line failure
    14   ABS C-CAN ESC 1. CAN line failure
    15   FALLS C-CAN FALLS 1. CAN line failure
    16   LED OFF C-CAN FALLS 1. CAN line failure
    17   ECS C-CAN ECS 1. CAN line failure
    18   EPB C-CAN EPB 1. CAN line failure
    19   ESC C-CAN ESC 1. CAN line failure
    20   ESC OFF C-CAN ESC 1. CAN line failure
    21   DBMS (TREAD) C-CAN DBMS 1. CAN line failure
    22   Trunk Open C-CAN BCM 1. CAN line failure
    23   VCIM OFF C-CAN SCC 1. CAN line failure
    25   Fuel Low Hardware Fuel sender
    1. Fuel sender failure
    2. Wiring failure
    27   Parking Brake C-CAN BCM
    TCS
    EPB    		 1. CAN line failure
    28   Oil Pressure Hardware Oil Pressure Sensor 1. Wiring failure
    29   Battery Charge Hardware Battery Sensor 1. Wiring failure
    30   Check Engine C-CAN EMS 1. CAN line failure
    31   Low Washer Hardware Washer fluid Sensor 1. Wiring failure
    32   OUT LOUD (Green) C-CAN ESC 1. CAN line failure
      OUT LOUD (Yellow) C-CAN ESC 1. CAN line failure
      OUT LOUD (White) C-CAN ESC 1. CAN line failure
    33   LAWS C-CAN LAWS 1. CAN line failure
    34   LAWS Fail C-CAN LAWS 1. CAN line failure
    35   SCC radar FAIL C-CAN SCC 1. CAN line failure
    36   SCC system FAIL C-CAN SCC 1. CAN line failure
    37   ECO Hardware Driver Mode Switch
    1. Switch failure
    2. Wiring failure
    38   SPORT C-CAN (ECS option) Driver Mode Switch
    1. Switch failure
    2. Wiring failure
    3. CAN line failure (ECS option)
    Hardware (Non-ECS)
      SNOW C-CAN
    (ECS option)
    Hardware (Non-ECS)
  2. Check point (Gauge)
    No. Name Signal Input Signal Control (Unit/Sensor) Check Point
    1 Speedometer C-CAN TCU, 1. CAN Line failure
    2 Tachometer C-CAN EMS 1. CAN Line failure
    3 Cooling water temperature C-CAN EMS 1. CAN Line failure
    4 Fuel Hardware Fuel sender
    1. Fuel sender failure
    2. Wiring failure
    5 Shift lever indicator C-CAN TCU 1. CAN Line failure
    6 Compass MM-CAN HU 1. CAN Line failure
    7 Outside temperature C-CAN DATA 1. CAN Line failure
    8 Clock MM-CAN AVN head unit 1. CAN Line failure
  3. Connector terminal check list
    No. Description Input/Output Communication Check Point
    Speck Condition
    A1 Air bag (+) Input Hardware 9 ~ 16 V IGN switch ON
    A2 - - -
    A3 Rheostat down switch Input Hardware Below 12v IGN switch ON
    Rheostat down switch ON
    A4 Rheostat up switch Input Hardware Below 12v IGN switch ON
    Rheostat up switch ON
    A5 - - -
    A6 Oil pressure Input Hardware Below 12v IGN switch ON
    OIL switch ON
    A Washer fluid Input Hardware Below 12v IGN switch ON
    WASHER FLUID switch ON
    A Battery charge Input Hardware Below 12v IGN switch ON
    CHARGE switch ON
    A9 Heated steering input Input Hardware Above 6 V IGN switch ON
    HEAD START switch ON
    A1 LEADOFF Input -
    A1 - - - - -
    A1 Driving mode switch Input Hardware Below 12v IGN switch ON
    Driving mode switch ON
    A1 D Output -
            Below 1.1 V IGN switch ON
    FUEL Full
    A1 Fuel level sensor input Input Hardware
            Above 12v IGN switch ON
    FUEL Empty
    A1 S Output -
    A1 Fuel level sensor GND Input Hardware Below 12v Always
    A1 - - -
    A1 - - -
    A1 IGN2 Input Hardware 9 ~ 16 V IGN switch ON
            Below 12v When IGN switch ON (cranking)
    A2 ILL(+) Input Hardware Above 6 V When IGN switch ON
    ILL(+) switch ON
    A21 - - -
    A22 Speaker (+) Output Hardware 2.7 ~ 5.5 V IGN switch ON
    A23 Speaker (-) Output Hardware 2.7 ~ 5.5 V IGN switch ON
    A24 - - -
    A25 VS_4P_OUT Output Hardware 9 ~ 16 V IGN switch ON
    Vehicle speed is over 1Km/h
    A26 R Output -
    A27 P Output -
    A28 DETENT_OUT Output Hardware 9 ~ 16 V IGN switch ON
    Rheostat MAX
    A29 - - -
    A30 M CAN high Input CAN - -
    A31 M CAN low Input CAN - -
    A32 C CAN low Input CAN - -
    A33 C CAN high Input CAN - -
    A34 N Output -
    A35 Illumination output (-) Output Hardware 9 ~ 16 V IGN switch ON
    ILL(+) switch ON
    A36 Power GND Input Hardware Below 12v Always
    A37 Signal GND Input Hardware Below 12v Always
    A38 - - -
    A39 IGN1 Input Hardware 9 ~ 16 V IGN switch ON
    A40 Battery power Input Hardware 9 ~ 16 V Always
  4. Communication information
    Transmision Unit Receive Unit CAN communication Reference
    Cluster BCM C-CAN Refuel detecede state
    Instant fuel consumption information
    Low fuel warning information
    Vehicle setting condition
    Illumination setting
    Cluster EMS C-CAN
    MM-CAN    		 SPORT/ECO Mode
    TCU
    EHPS
    ECS
    ESP
    AVN
    Cluster SCC C-CAN Vehicle speed
    Cluster ACT C-CAN Airbag state
    AAF Cluster CAN Active air flap warning indicator
    ACT Cluster CAN Airbag warning indicator control
    FALLS Cluster CAN LED OFF message
    FALLS warning lamp
    BCM Cluster CAN Hood indicator display
    DATA Cluster CAN External temperature display
    ECS Cluster CAN Warning control
    EHPS Cluster CAN Warning control
    EMS Cluster CAN Tachometer control
    Temperature gauge control
    Check engine symbol, CRUISE and SET indicator control
    EPB Cluster CAN EPB indicator, Parking brake indicator control
    Sound control
    ESC Cluster CAN
    BCM Cluster CAN Vehicle setting control
    Warning indicator and warning sound, PAS control
    HUD Cluster CAN HUD setting input (Head Up Display)
    LCA Cluster CAN LCA warning message
    LAWS Cluster CAN LAWS warning message display and HBA (High Beam Assist) warning & message control
    LVR Cluster CAN SBW (Seat Belt Warning) message display
    PUB Cluster CAN PUB (Pre Safe Seat Belt) warning message display
    SAS Cluster CAN Steering angle
    SCC Cluster CAN SCC control, VSM mode
    SMK Cluster CAN Smart key display
    TCS Cluster CAN ESC OFF switch condition
    Brake lamp ON/OFF by SCC
    Warning lamp display
    TCU Cluster CAN AT Shift lever information display
    Vehicle speed input
    SBW display
    DBMS Cluster CAN DBMS display
  5. Other cluster check list
    1. USM (User Setting Mode)

      USM setting process (mode: 24)

      Setting can be changed by using the buttons of the steering switch. The items include In/out Seat Synchronization, vAuto Door Lock, Auto Door Lock Deactivate, Head Lamp Escort, Welcome Light, Welcome Sound, Triple Turn Signal, Average Fuel Consumption Auto Reset, HUD Height Adjustment, Brightness, and Content Setup. These items can be set and changed.

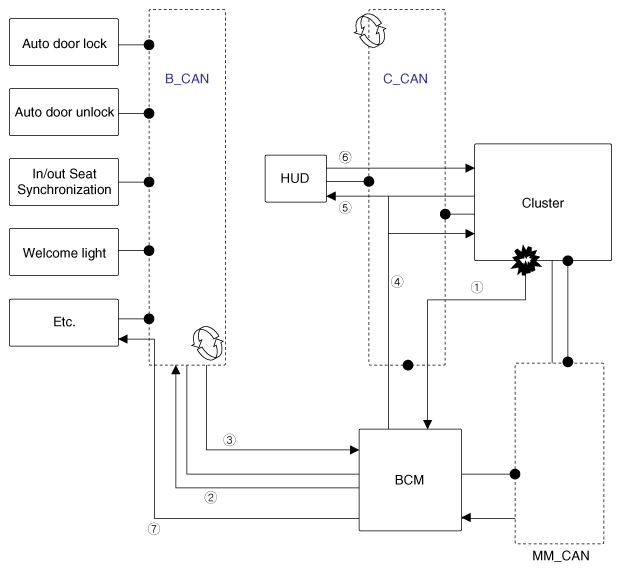

      Fig 1: Cluster - Circuit Diagram
      G09791148Courtesy of HYUNDAI MOTOR AMERICA
    2. UMS Setting Procedure
      1. Module setting

        (1) UMS settings are sent to BCM →

        (2) Settings are sent via BCM B_CAN to the relevant module →

        (3) When the module setting is completed, the current settings are sent to BCM →

        (4) The final settings are sent via BCM C-CAN to the dashboard.

      2. HUD (Head Up Display) setting

        (5) HUD-related settings of UMS are sent →

        (6) HUD light brightness/height settings are sent to display the final settings

      3. Haptic setting: The haptic settings of UMS are transmitted to modify the haptic experience.
