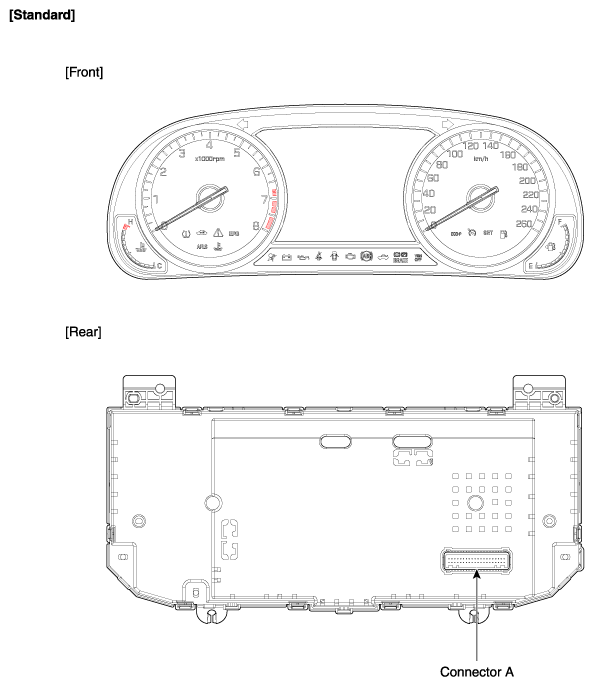

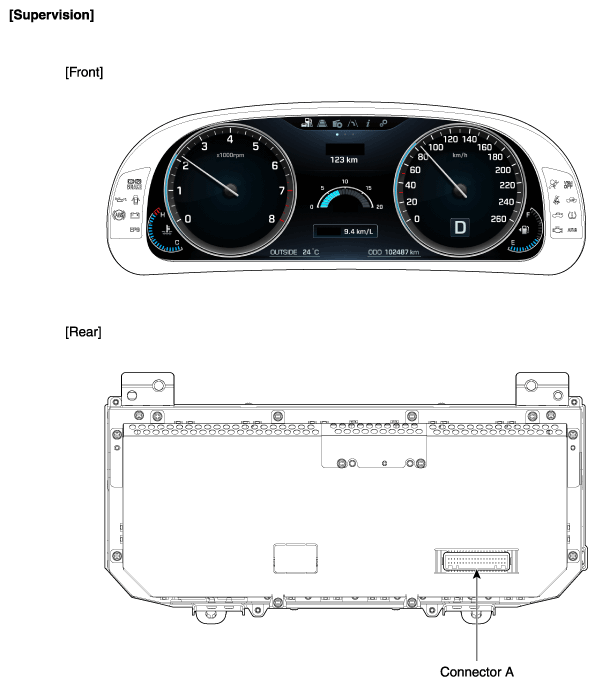

Components and Components Location: Components
CONNECTOR PIN REFERENCE
| No. | Description |
|---|---|
| 1 | Air bag + |
| 2 | - |
| 3 | Rheostat down switch |
| 4 | Rheostat up switch |
| 5 | - |
| 6 | Oil pressure |
| 7 | Low washer |
| 8 | Battery charge |
| 9 | Heated wheel indicator |
| 10 | LED OFF (Input) |
| 11 | - |
| 12 | Driving mode switch |
| 13 | D Output |
| 14 | Fuel |
| 15 | S Output |
| 16 | Fuel GND |
| 17 | - |
| 18 | - |
| 19 | IGN2 input |
| 20 | Illumination + |
| 21 | - |
| 22 | Speaker + |
| 23 | Speaker - |
| 24 | - |
| 25 | Vehicle speed 4P output |
| 26 | R Output |
| 27 | P Output |
| 28 | Detent output |
| 29 | - |
| 30 | MM_CAN High |
| 31 | MM_CAN Low |
| 32 | C_CAN High |
| 33 | C_CAN Low |
| 34 | N Output |
| 35 | Illumination Output |
| 36 | Power ground |
| 37 | Signal ground |
| 38 | - |
| 39 | IGN + |
| 40 | Battery + |
