Repair procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front pillar trim.

    (Refer to FRONT PILLAR TRIM )

  2. Remove the cowl side trim.

    (Refer to COWL SIDE TRIM )

  3. Remove the front LCD monitor.

    (Refer to FRONT LCD MONITOR )

  4. Remove the AVN head unit.

    (Refer to AVN (AUDIO VIDEO NAVIGATION) HEAD UNIT

  5. Remove the instrument cluster.

    (Refer to INSTRUMENT CLUSTER )

  6. Remove the crash pad center panel.

    (Refer to CRASH PAD CENTER PANEL )

  7. Remove the steering wheel.

    (Refer to STEERING WHEEL

  8. Remove the multifunction switch assembly.

    (Refer to MULTIFUNCTION SWITCH

  9. Disconnect the head up display (HUD) unit connector (A).
    Fig 1: Disconnecting Head Up Display Unit Connector
    G09790599Courtesy of HYUNDAI MOTOR AMERICA
  10. After loosening the mounting screws, then remove the crash pad upper panel [LH] (A).
    Fig 2: Identifying Crash Pad Upper Panel (LH)
    G09790600Courtesy of HYUNDAI MOTOR AMERICA
  11. Disconnect the crash pad upper panel switch connector (A).
    Fig 3: Disconnecting Crash Pad Upper Panel Switch Connector
    G09790601Courtesy of HYUNDAI MOTOR AMERICA
  12. After loosening the mounting screws, then remove the cubis unit (A).
    Fig 4: Removing Cubis Unit
    G09790602Courtesy of HYUNDAI MOTOR AMERICA
  13. Disconnect the cubis unit connectors (A).
    Fig 5: Identifying Cubis Unit Connectors
    G09790603Courtesy of HYUNDAI MOTOR AMERICA
  14. Disconnect the photo sensor connector (A).
    Fig 6: Identifying Photo Sensor Connector
    G09790604Courtesy of HYUNDAI MOTOR AMERICA
  15. Disconnect the center speaker connector (A).
    Fig 7: Identifying Center Speaker Connector
    G09790605Courtesy of HYUNDAI MOTOR AMERICA
  16. Loosen the mounting bolts.
  17. Disconnect the passenger's airbag connectors (A).
    Fig 8: Identifying Passenger's Airbag Connectors
    G09790606Courtesy of HYUNDAI MOTOR AMERICA
  18. After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).

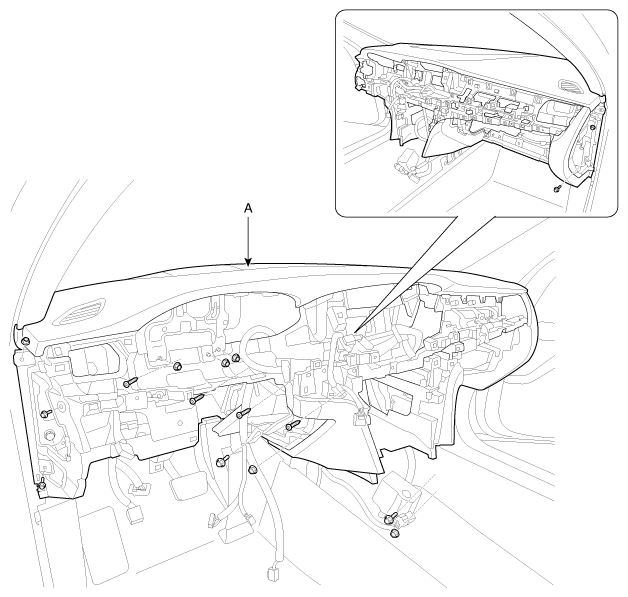

    Fig 9: Identifying Main Crash Pad Assembly
    G09790607Courtesy of HYUNDAI MOTOR AMERICA
  19. Install in the reverse order of removal.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customers radio station presets.
