Component Location

[LH]

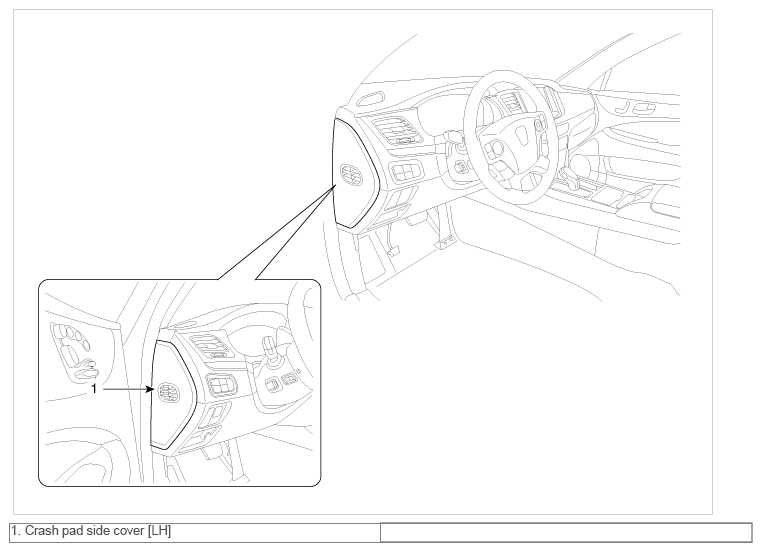

Fig 1: Crash Pad Side Cover Components Location - LH
G09790583Courtesy of HYUNDAI MOTOR AMERICA

[RH]

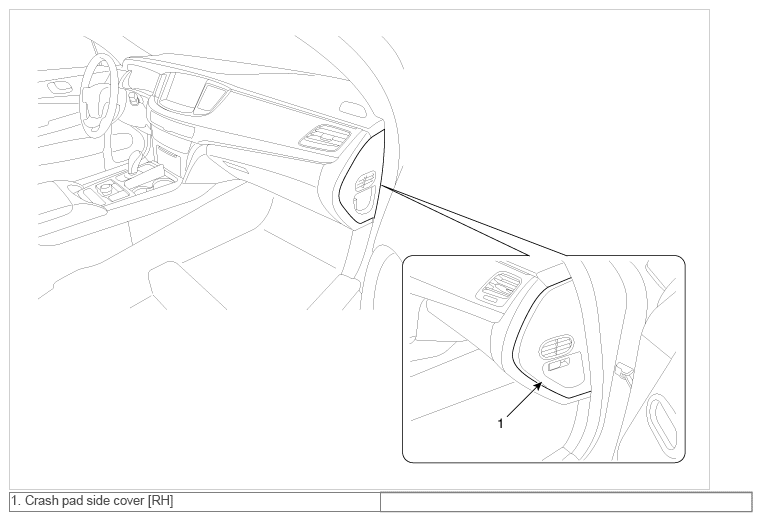

Fig 2: Crash Pad Side Cover Components Location - RH
G09790584Courtesy of HYUNDAI MOTOR AMERICA
