Repair procedures: Replacement
CAUTION:
- Put on gloves to protect your hands.
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the floor console assembly.
(Refer to FLOOR CONSOLE ASSEMBLY )
- Remove the center fascia lower tray.
(Refer to CENTER FASCIA PANEL )
- Remove the AVN head unit.
(Refer to AVN (AUDIO VIDEO NAVIGATION) HEAD UNIT
- Remove the cluster fascia panel.
(Refer to "CLUSTER FASCIA PANEL ")
- Remove the crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL ")
- Remove the glove box housing.
(Refer to "GLOVE BOX HOUSING ")
- To remove the crash pad under cover [RH] (A), press both sides of the locking pin and then pull it down in the direction of the arrow.
- Disconnect the under lamp connector (A).
- Remove the luggage trim [RH] (A).
- Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

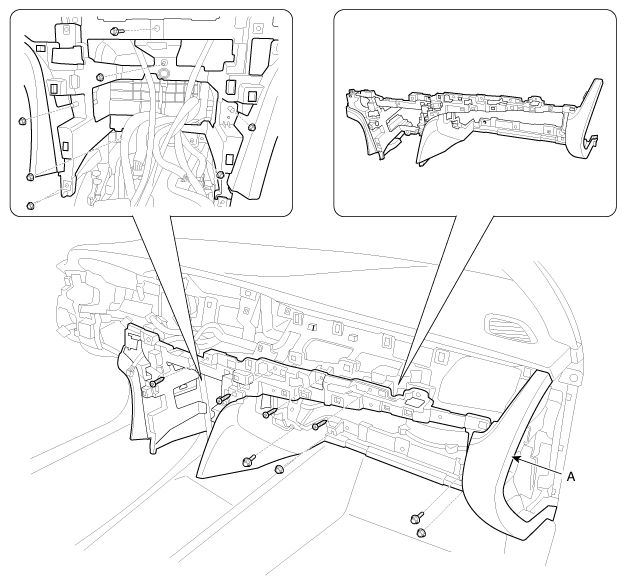

- After loosening the mounting screws, bolts, nuts, then remove the crash pad center panel (A).
- Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
