[Center Fascia Upper Panel]

CAUTION:

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

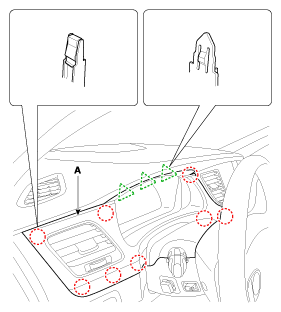

Using a screwdriver or remover, remove the cluster fascia upper panel (A).

Fig 1: Identifying Cluster Fascia Upper Panel
Courtesy of HYUNDAI MOTOR AMERICA

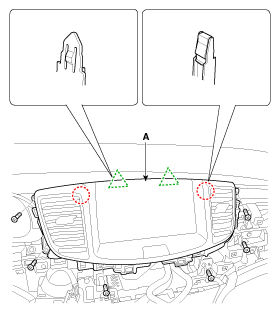

Using a screwdriver or remover, remove the center fascia upper panel (A).

Fig 2: Identifying Center Fascia Upper Panel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the heater and A/C controller connector (A) and start connector (B).

Fig 3: Identifying A/C Controller Connector And Start Connector
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting screws, remove the center fascia complete lower panel (A).

Fig 4: Identifying Center Fascia Complete Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
