Telltale Lamp Circuit Inspection

Ignition "OFF".
Disconnect the battery (-) terminal cable from the battery and wait at least one minutes.
Disconnect SRSCM main harness connector.
Connect the battery (-) terminal cable to the battery and Ignition "ON" & Engine "OFF".
Measure voltage between Telltale lamp terminal of the SRSCM harness connector and chassis ground.
Specification: Batt Voltage

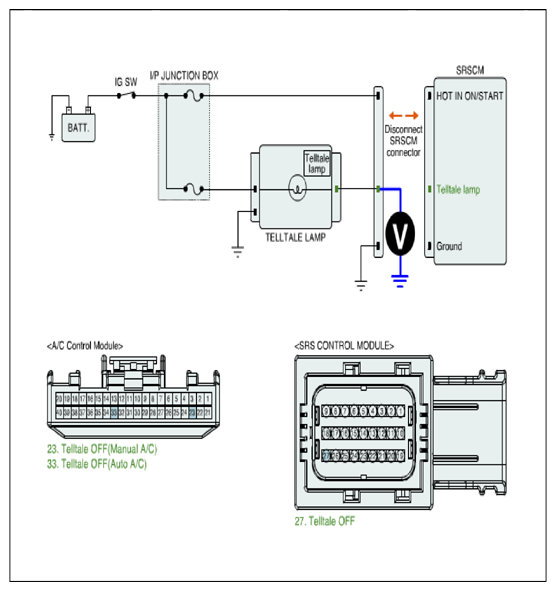

Fig 1: Measuring Voltage Between Telltale Lamp Terminal Of SRSCM Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured voltage within specifications?
YES
- Check telltale lamp and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Check airbag fuse, passenger compartment junction block, harness between junction block and SRSCM. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
