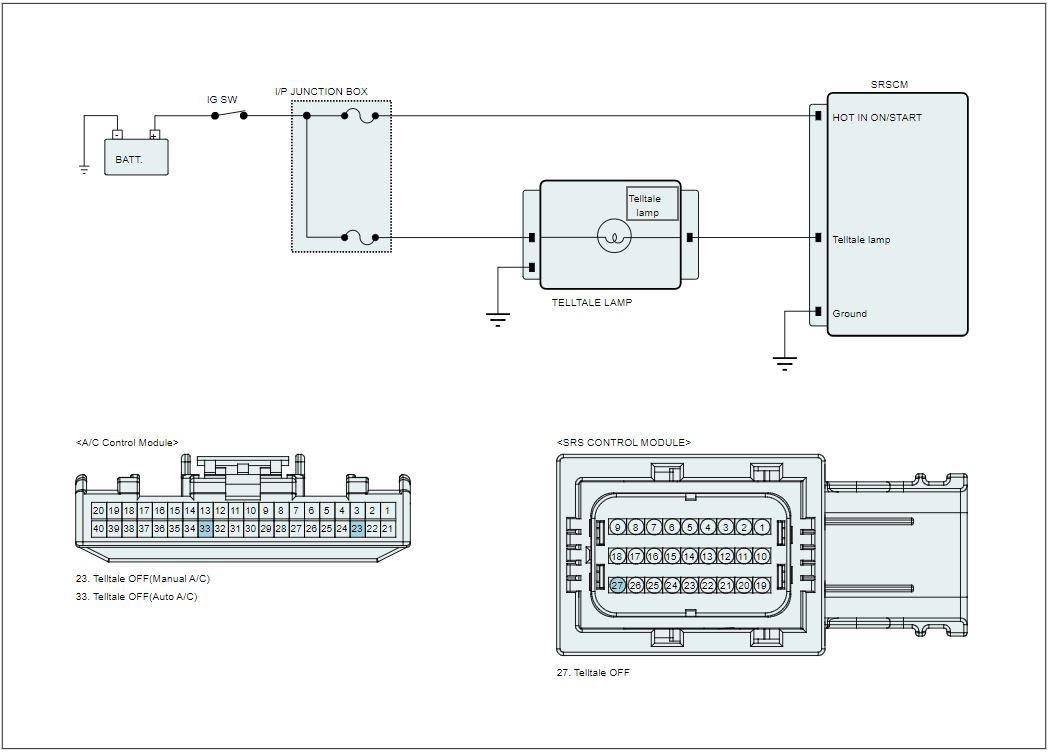

Home >> Hyundai >> 2014 >> Azera Limited >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #1) Diagnosis (2 Of 2) >> DTC B2502-00: Passenger Airbag Telltale Lamp Failure >> General Information >> Diagnostic Circuit Diagram
