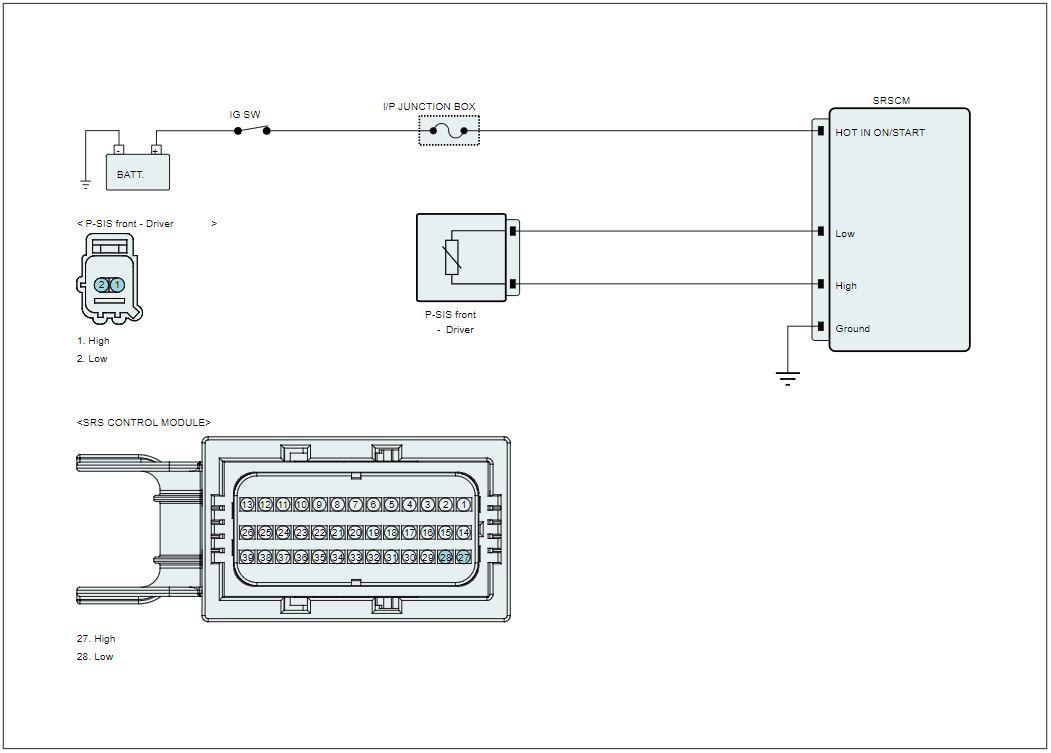

Home >> Hyundai >> 2014 >> Azera Limited >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #1) Diagnosis (2 Of 2) >> DTC B1742-00: P-SIS (Side Impact Sensor, Pressure) Front-Driver Communication Error >> General Information >> Diagnostic Circuit Diagram
