Monitor Scantool Data

  1. Ignition "OFF", connect scantool.
  2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
  3. Monitor diagnostic trouble code and present of trouble code.
  4. Using a scan tool, clear the DTC.

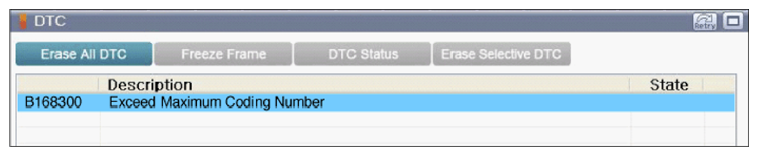

    Fig 1: Display - Exceed Maximum Coding Number DTC
    G08815524Courtesy of HYUNDAI MOTOR AMERICA
  5. Is DTC present problem?

    YES

    • Replace it with a new one and then check if the vehicle specifications are correct. After that, perform SRSCM (ACU) Variant Coding and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
