Power Circuit Inspection

Check for an open or short circuit in the Passenger side Body Sense sensor Mat & ECU Power Circuit.
1. Disconnect Passenger side PODS-F sensor Mat & ECU connector from wiring harness.
2. Ignition "ON" & Engine "OFF".
  1. Measure voltage between terminal "supply voltage" and chassis ground.
    Specification: Battery Voltage

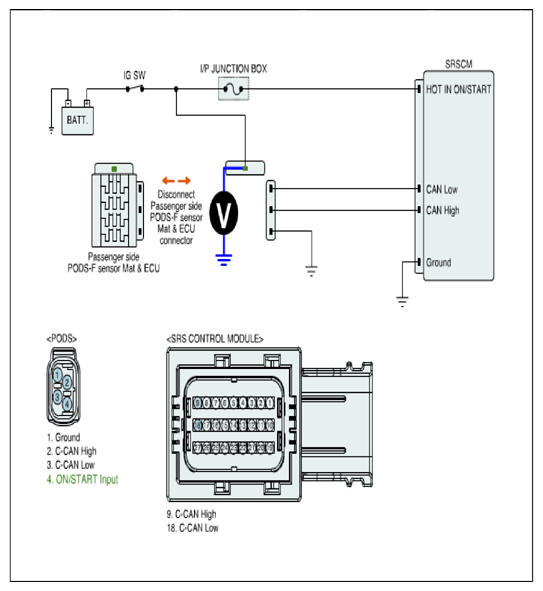

    Fig 1: Measuring Voltage Between Terminal Supply Voltage And Chassis Ground
    Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured voltage within specifications?
  YES
  - Go to "CAN COMMUNICATION LINE INSPECTION " procedure.
  NO
  - Substitute the Passenger side PODS-F sensor Mat & ECU main harness check for proper operation.
    If the problem is corrected, replace Passenger side PODS-F sensor Mat & ECU main harness then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
