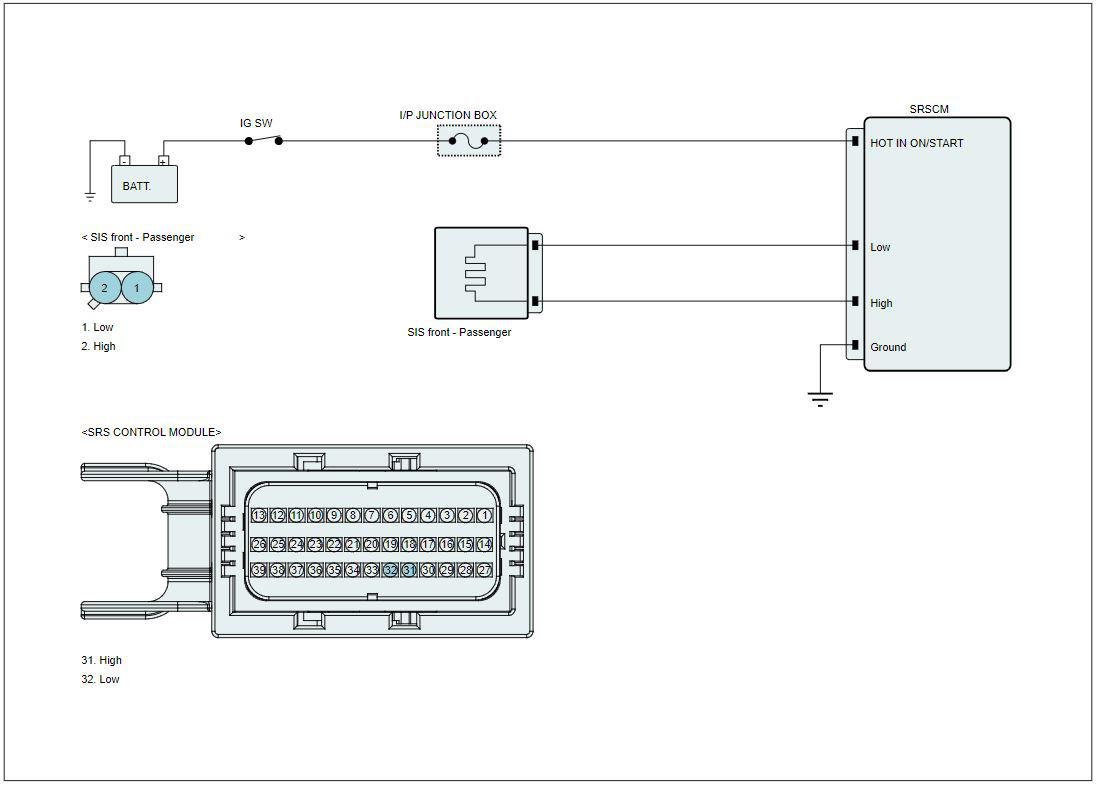

Home >> Hyundai >> 2014 >> Azera Limited >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #1) Diagnosis (1 Of 2) >> DTC B1403-00: SIS (Side Impact Sensor) Front-Passenger Defect >> General Information >> Diagnostic Circuit Diagram
