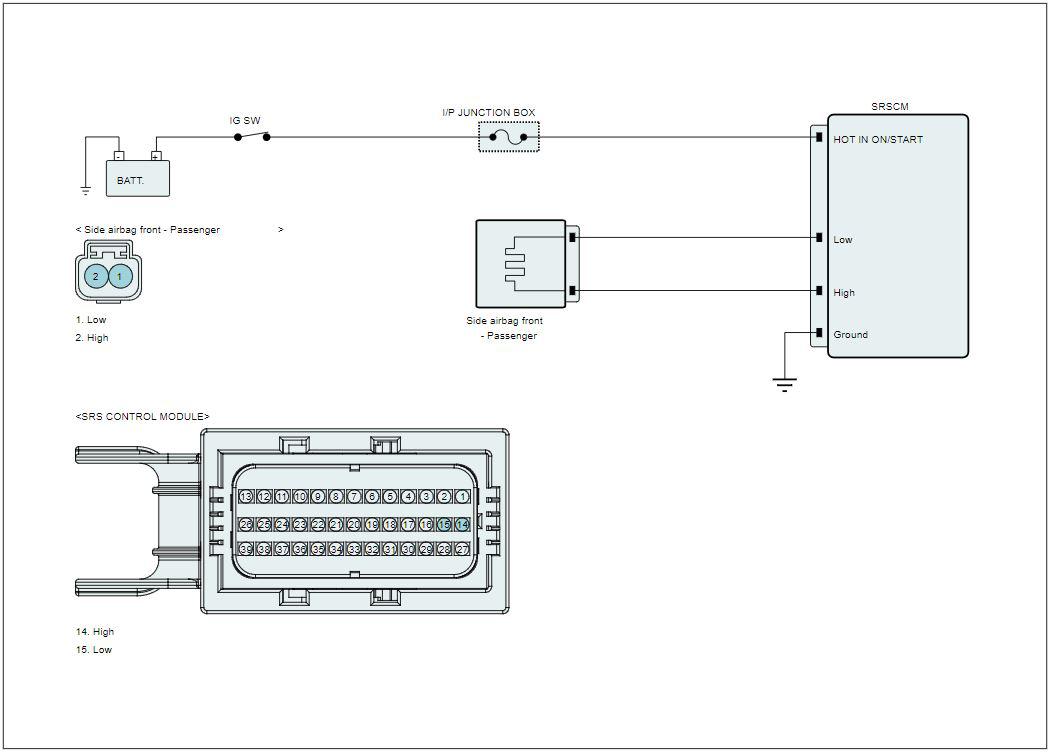

Home >> Hyundai >> 2014 >> Azera Limited >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #1) Diagnosis (1 Of 2) >> DTC B1385-00: Side Airbag Front-Passenger Resistance Circuit Short to Battery >> General Information >> Diagnostic Circuit Diagram
