Main Harness Circuit Inspection

Ignition "OFF".
Disconnect the battery (-) terminal cable from the battery and wait at least one minutes.
Disconnect PAB connector and SRSCM main harness connector.
WARNING: Lay Removed PAB facing upward for unexpected air bag deploy.
Measure resistance between terminal "Low" and "High" of the Passenger airbag active vent harness connector.
Specification: approx. 1 Ω below

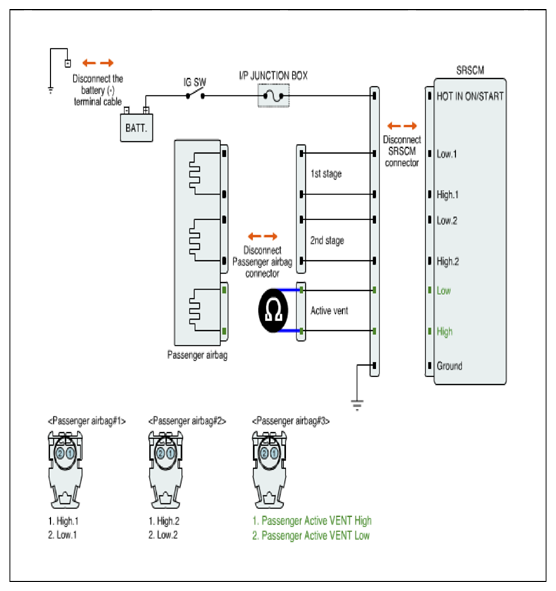

Fig 1: Measuring Resistance Between Terminal Low And High Of Passenger Airbag Active Vent Harness Connector
Courtesy of HYUNDAI MOTOR AMERICA

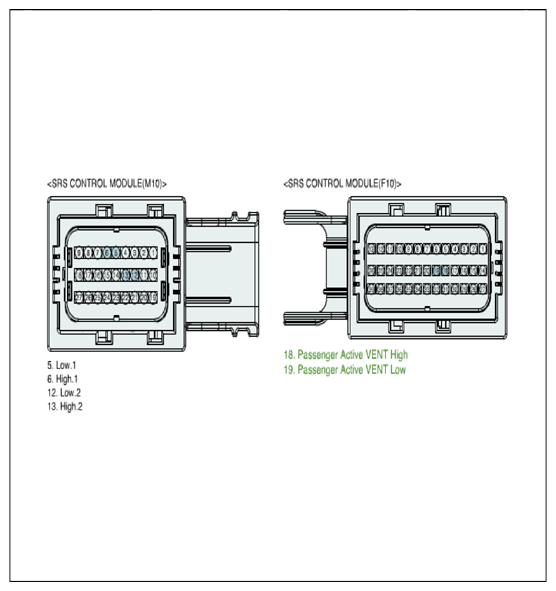

Fig 2: Identifying SRS Control Module Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured resistance within specifications?
YES
- Substitute a known-good SRSCM, and check for proper operation.
  If the problem is corrected, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute the SRSCM main harness and check for proper operation.
  If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
