Component Location

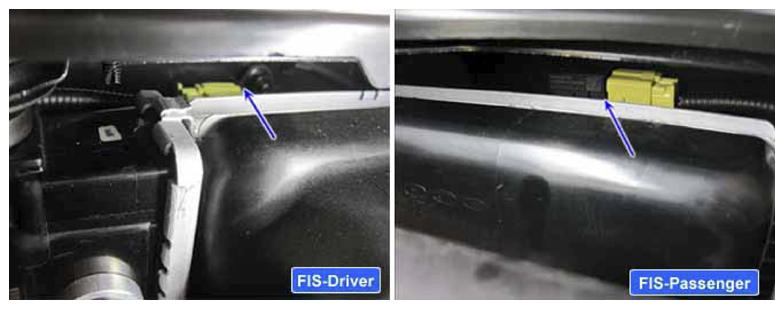

Fig 1: FIS-Driver And FIS-Passenger Components Location
G08815071Courtesy of HYUNDAI MOTOR AMERICA
