Repair Procedures: Replacement

CAUTION:

When prying with a flat-tip screwdriver wrap it with protective tape and apply protective tape around the related parts to prevent damage.
Take care not to scratch the body surface.
Put on gloves to protect your hands.

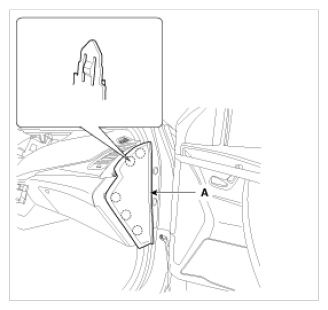

Using a screwdriver or remover, remove the crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of HYUNDAI MOTOR AMERICA

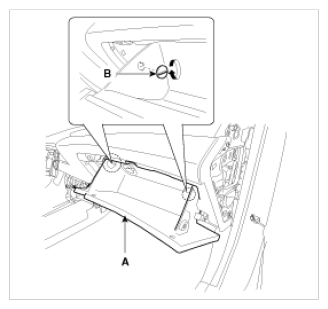

Disconnect the stopper (B) from the glove box (A).

Fig 2: Identifying Glove Box And Stopper
Courtesy of HYUNDAI MOTOR AMERICA

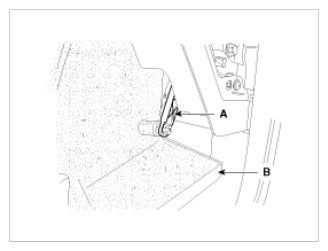

Disconnect the air damper (A) from the glove box (B).

Fig 3: Identifying Air Damper And Glove Box
Courtesy of HYUNDAI MOTOR AMERICA

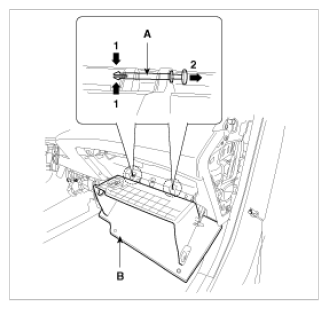

Disconnect the pin (A) and then remove the glove box (B).

Fig 4: Identifying Glove Box And Pin
Courtesy of HYUNDAI MOTOR AMERICA

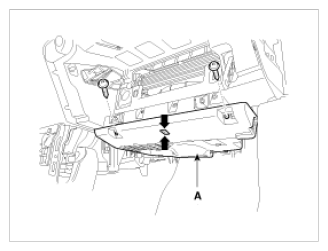

After loosening the mounting screws, then remove the passenger's under cover (A).

Fig 5: Removing Passenger's Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

Fig 6: Identifying Passenger's Under Cover Connector
Courtesy of HYUNDAI MOTOR AMERICA

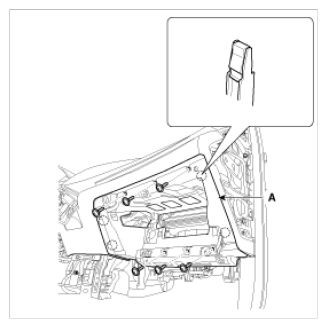

After loosening the mounting screws, then remove the glove box housing (A).

Fig 7: Identifying Glove Box Housing
Courtesy of HYUNDAI MOTOR AMERICA

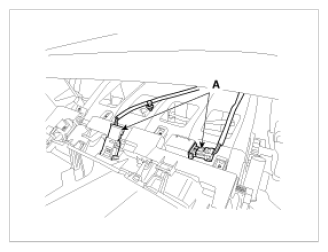

Disconnect the connectors (A).

Fig 8: Identifying Glove Box Housing Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damaged clips.
