Circuit Diagram

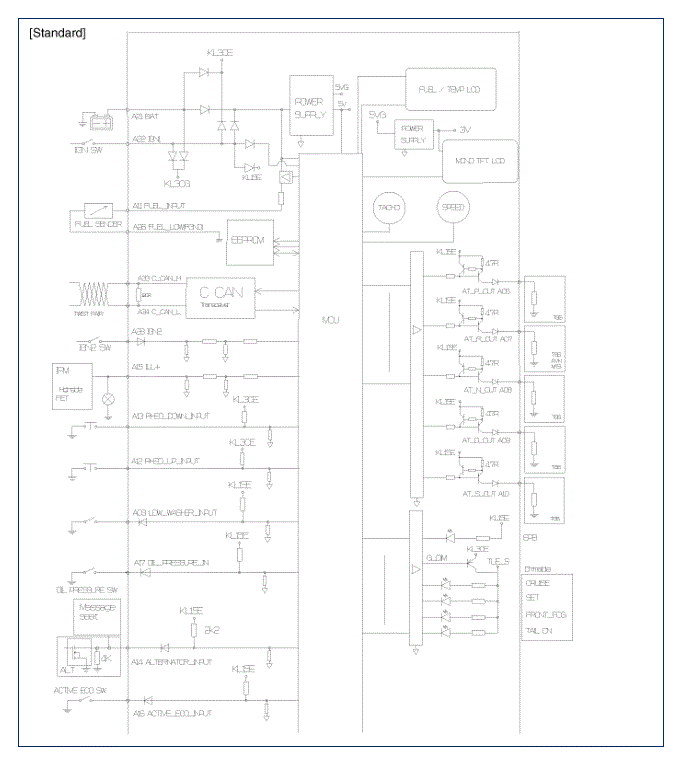

Fig 1: Instrument Cluster Circuit Diagram (Standard) (1 Of 3)
G08814372Courtesy of HYUNDAI MOTOR AMERICA

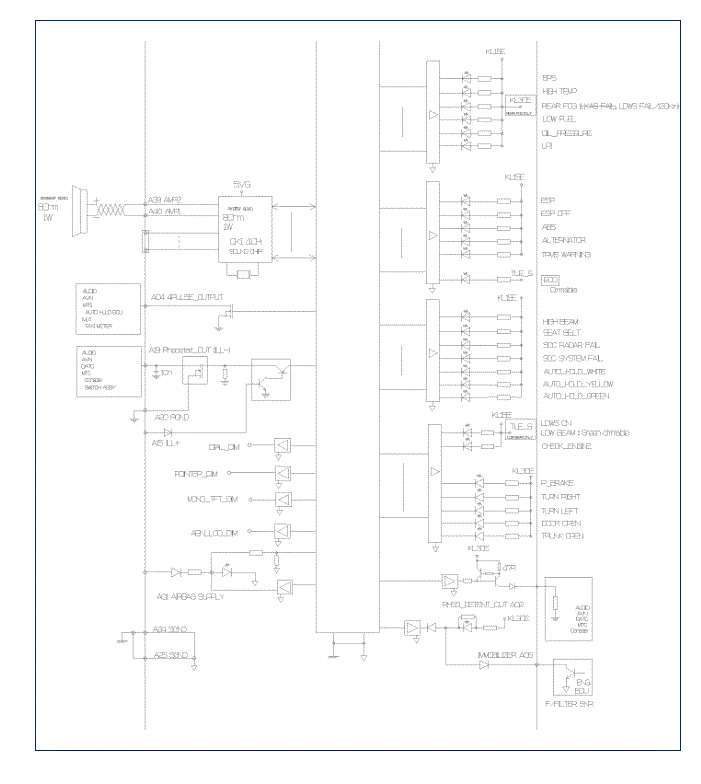

Fig 2: Instrument Cluster Circuit Diagram (Standard) (2 Of 3)
G08814373Courtesy of HYUNDAI MOTOR AMERICA

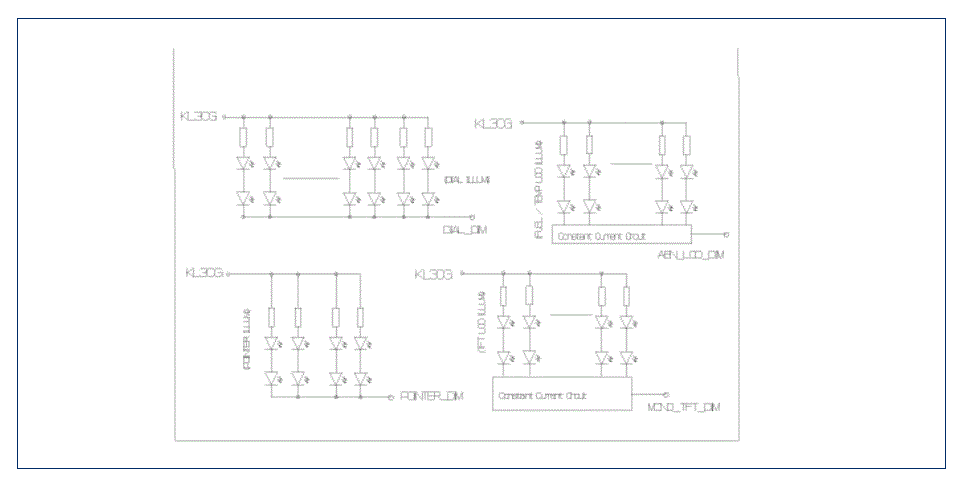

Fig 3: Instrument Cluster Circuit Diagram (Standard) (3 Of 3)
G08814374Courtesy of HYUNDAI MOTOR AMERICA

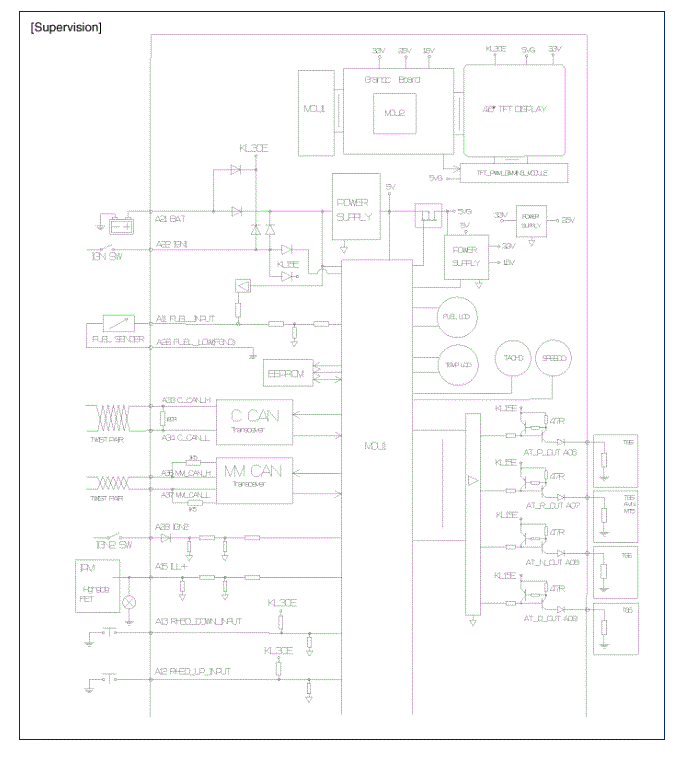

Fig 4: Instrument Cluster Circuit Diagram (Supervision) (1 Of 3)
G08814375Courtesy of HYUNDAI MOTOR AMERICA

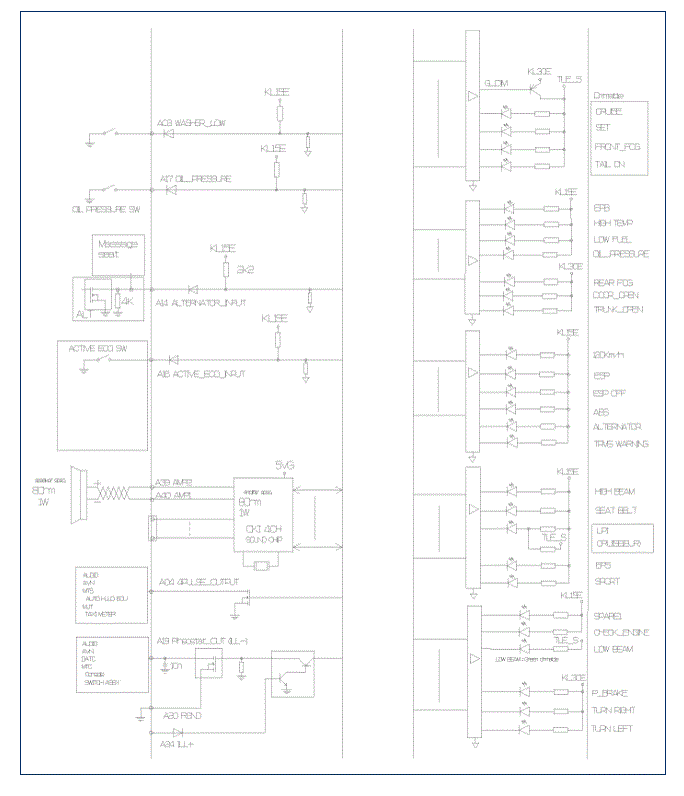

Fig 5: Instrument Cluster Circuit Diagram (Supervision) (2 Of 3)
G08814376Courtesy of HYUNDAI MOTOR AMERICA

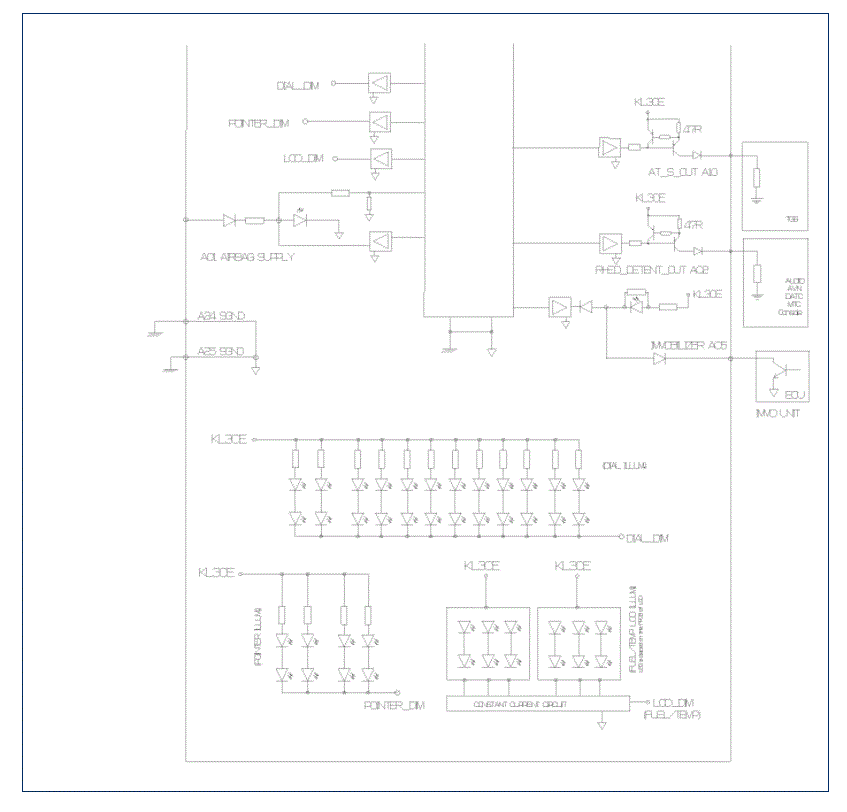

Fig 6: Instrument Cluster Circuit Diagram (Supervision) (3 Of 3)
G08814377Courtesy of HYUNDAI MOTOR AMERICA
