Repair Procedures: Inspection: Speedometer
- Adjust the pressure of the tires to the specified level.

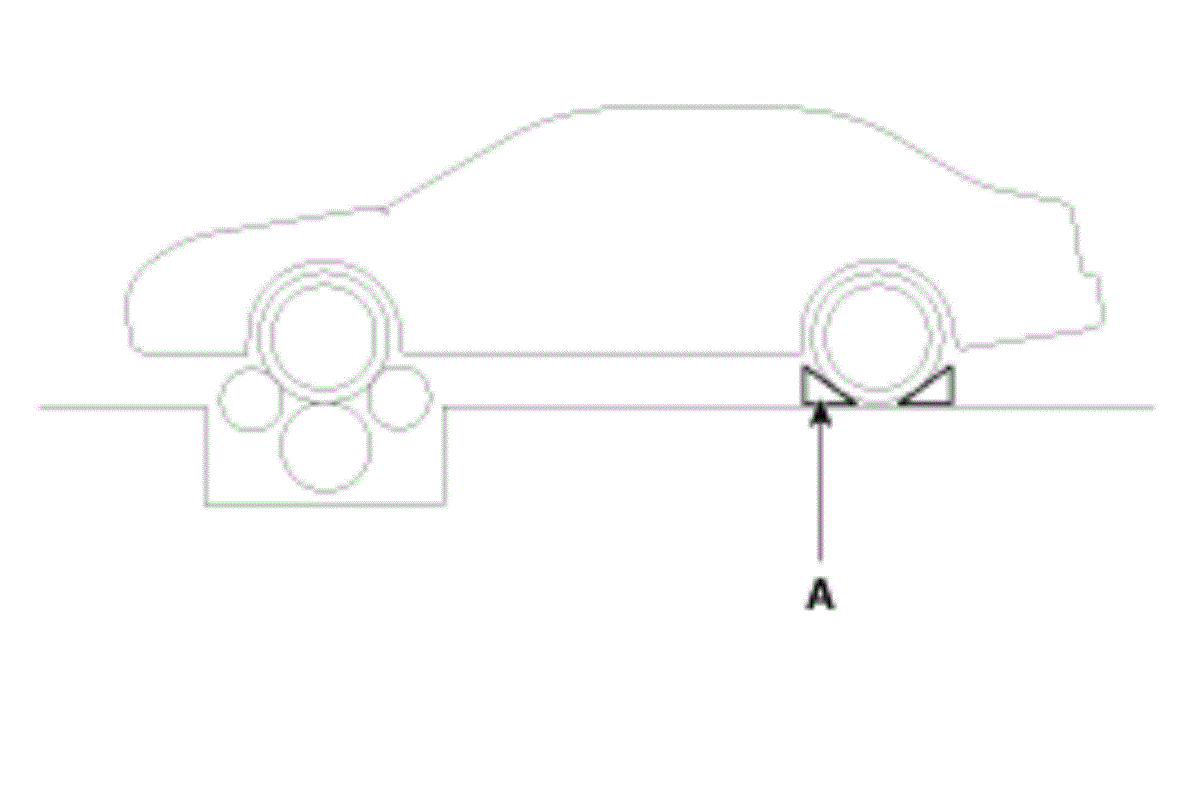

- Drive the vehicle onto a speedometer tester. Use wheel chocks (A) as appropriate.
- Check if the speedometer indicator range is within the standard values.CAUTION: Do not operate the clutch suddenly or increase/decrease speed rapidly while testing.NOTE: Tire wear and tire over or under inflation will increase the indication error.
VELOCITE AND TOLERANCE REFERENCE (CANADA)
| Velocity (km/h) | Tolerance (km/h) | Velocity (km/h) | Tolerance (km/h) |
|---|---|---|---|
| 20 | +0.1 +2.1 |
160 | +1.0 +5.9 |
| 40 | +0.2 +2.7 |
180 | +1.2 +6.1 |
| 60 | +0.3 +3.3 |
200 | +1.4 +6.3 |
| 80 | +0.4 +4.1 |
220 | +1.6 +6.5 |
| 100 | +0.5 +4.8 |
240 | +1.8 +6.7 |
| 120 | +0.6 +5.2 |
260 | +2.0 +7.2 |
| 140 | +0.7 +5.6 |
VELOCITE AND TOLERANCE REFERENCE (USA)
| Velocity (MPH) | Tolerance (MPH) | Velocity (MPH) | Tolerance (MPH) |
|---|---|---|---|
| 10 | +0.0 +1.3 |
100 | +1.0 +4.1 |
| 20 | +0.2 +1.5 |
120 | +1.2 +4.3 |
| 40 | +0.4 +2.1 |
140 | +1.4 +4.4 |
| 60 | +0.6 +2.7 |
160 | +1.6 +4.8 |
| 80 | +0.8 +3.5 |
