Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the upper shroud (A) with moving down the steering wheel.

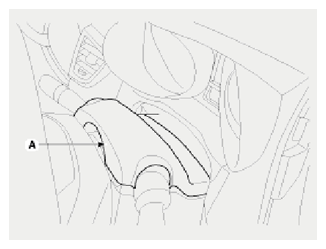

    Fig 1: Identifying Steering Wheel Upper Shroud
    G09135134Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the cluster fascia upper panel (A).

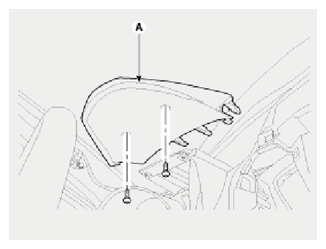

    Fig 2: Identifying Cluster Fascia Upper Panel And Mounting Bolt
    G09135135Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the cluster (A) after loosening 4 screws and disconnecting a connector (B).

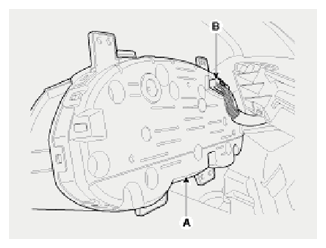

    Fig 3: Identifying Cluster And Connector
    G09135136Courtesy of HYUNDAI MOTOR AMERICA
