Circuit Diagram
Circuit Diagram

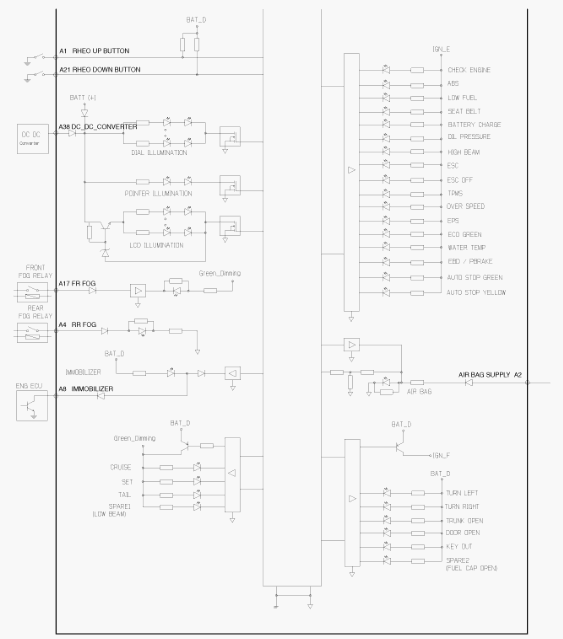

Fig 1: Instrument Cluster - Circuit Diagram (1 Of 2)
Courtesy of HYUN

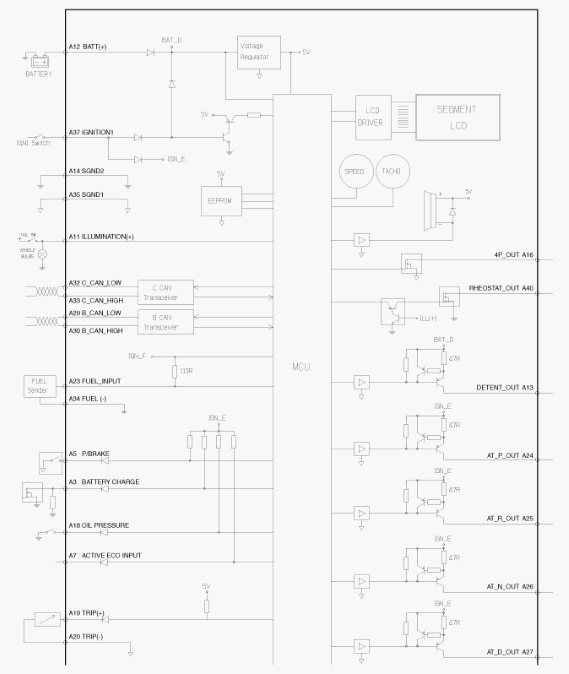

Fig 2: Instrument Cluster - Circuit Diagram (2 Of 2)
Courtesy of HYUN
