Repair procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the upper shroud (A) with moving down the steering wheel.

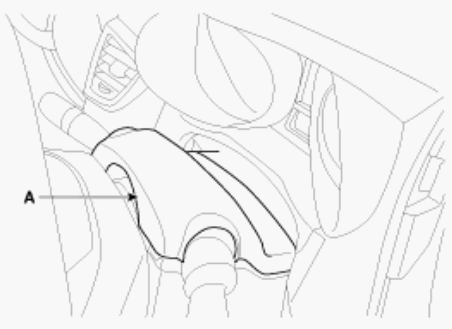

Fig 1: Identifying Steering Wheel Upper Shroud
Courtesy of HYUN
Remove the cluster fascia upper panel (A).

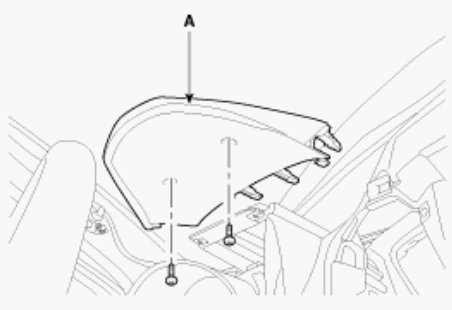

Fig 2: Identifying Cluster Fascia Upper Panel
Courtesy of HYUN
Remove the cluster (A) after loosening 4 screws and disconnecting a connector (B).

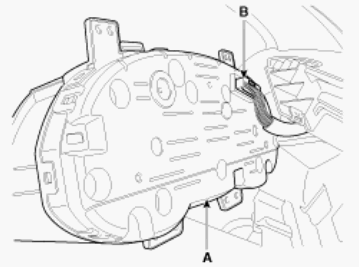

Fig 3: Identifying Cluster And Connector
Courtesy of HYUN
