Main Fuel Gauge Sender

  1. Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.

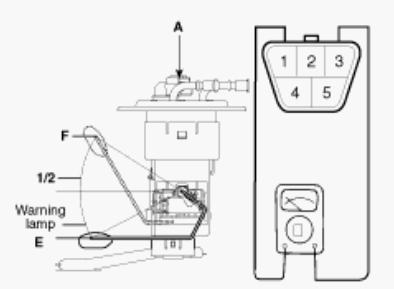

    Fig 1: Measuring Resistance Between Terminals 1 And 3 Of Sender Connector Float Level Using Ohmmeter
    G08811657Courtesy of HYUN
  2. Also check that the resistance changes smoothly when the float is moved from "E" to "F"
    Segment Position Resistance (Ω)
    12 Sender (F) 15 ± 2
    6 1/2 66.2 ± 2
    1 Warning lamp 156 ± 2
    1 Sender (E) 200 ± 3
  3. If the height resistance is unsatisfied, replace the fuel sender as an assembly.
    NOTE: After completing this test, wipe the sender dry and reinstall it in the fuel tank.
