Sunroof Motor Connector End View (R09)

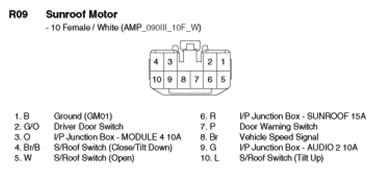

Fig 1: Sunroof Motor Connector End View (R09)

G10444078

Courtesy of HYUNDAI MOTOR AMERICA
