Electro Chromic Mirror Connector End View (R01)

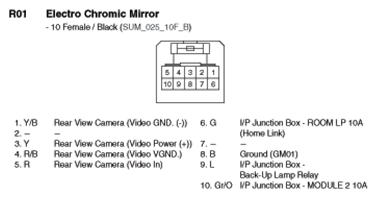

Fig 1: Electro Chromic Mirror Connector End View (R01)

G10444071

Courtesy of HYUNDAI MOTOR AMERICA
