Power Window Main Switch Connector End View (D10)

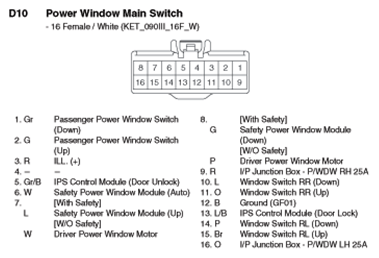

Fig 1: Power Window Main Switch Connector End View (D10)

G10444052

Courtesy of HYUNDAI MOTOR AMERICA
