Passenger Power Window Switch Connector End View (D31)

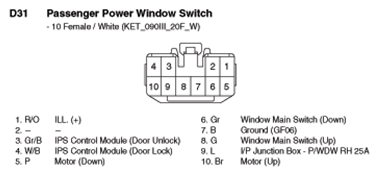

Fig 1: Passenger Power Window Switch Connector End View (D31)

G10444060

Courtesy of HYUNDAI MOTOR AMERICA
