Driver Safety Power Window Module (With Safety) Connector End View (D12)

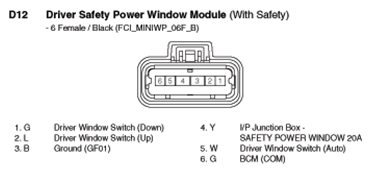

Fig 1: Driver Safety Power Window Module (With Safety) Connector End View (D12)

G10444053

Courtesy of HYUNDAI MOTOR AMERICA
