Components and Components Location: Components

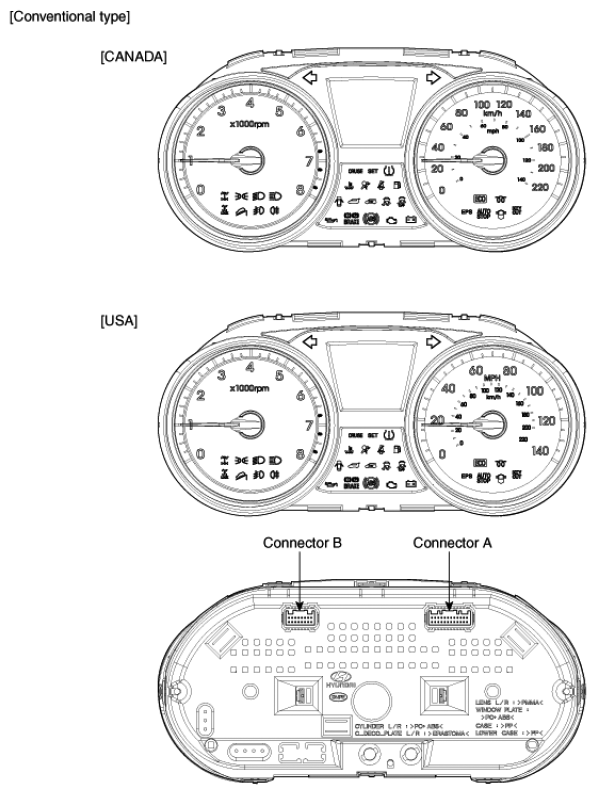

Fig 1: Identifying Instrument Cluster (Conventional Type)
G06873691Courtesy of HYUNDAI MOTOR CO.

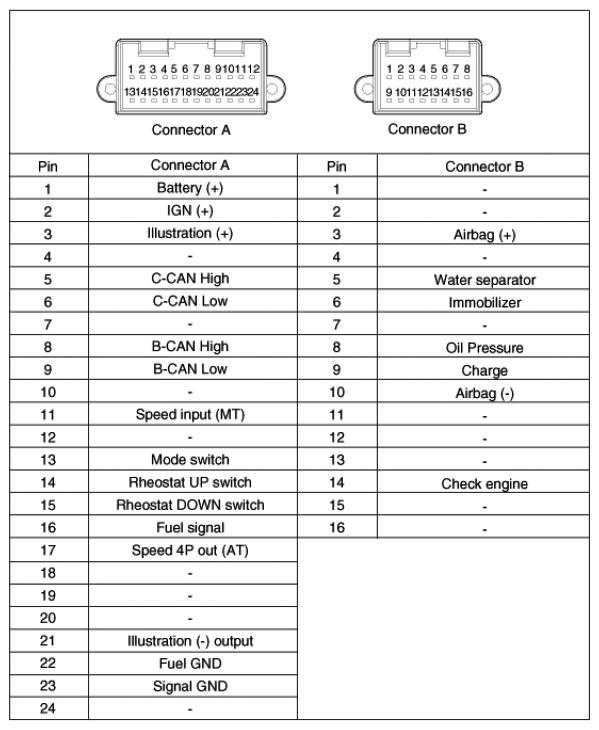

Fig 2: Identifying Instrument Cluster Connectors
G06873692Courtesy of HYUNDAI MOTOR CO.
