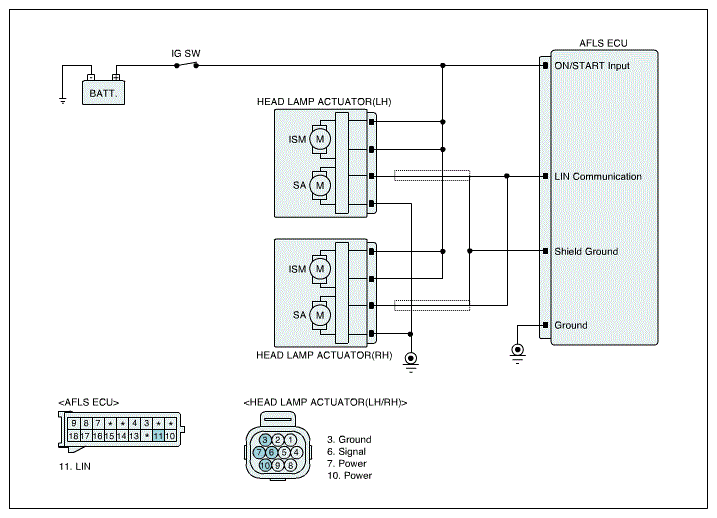

Home >> Hyundai >> 2012 >> Genesis 5.0 R-Spec >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Head Lamp AFLS (Led) Diagnosis >> DTC B1639: LIN communication error DBL (Dynamic Bending Light) left >> General Information >> Diagnostic Circuit Diagram
