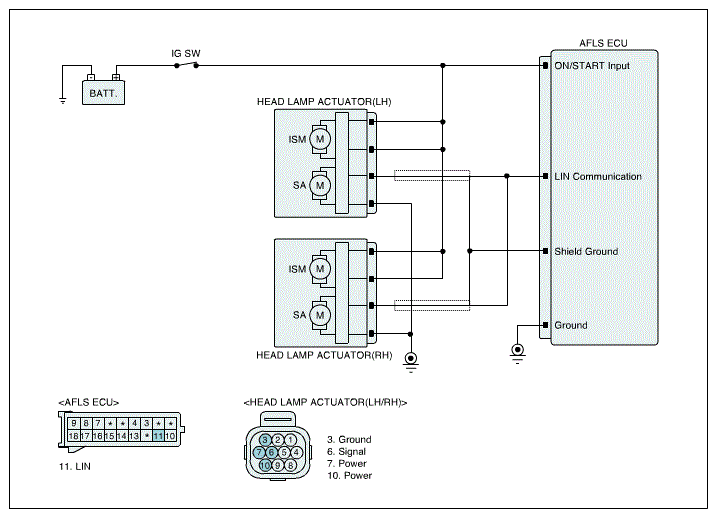

Home >> Hyundai >> 2012 >> Genesis 4.6 >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Head Lamp AFLS (Led) Diagnosis >> DTC B1953: AXLE Sensor Fault >> General Information >> Diagnostic Circuit Diagram
