Diagnosis With GDS

It will be able to diagnose defects of cluster (CLU) with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
Select model and "IPM".
Select the "CLU (Cluster)" to check.

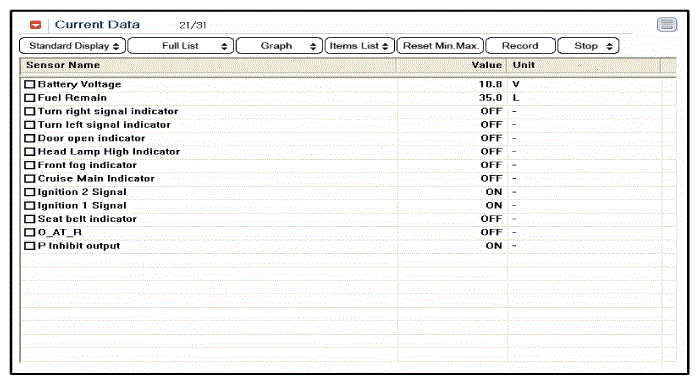

Select "Input/output monitoring", if you will check current data of cluster system. It provides input/output status of cluster.

Fig 1: Display - Cluster System Current Data
Courtesy of HYUNDAI MOTOR AMERICA

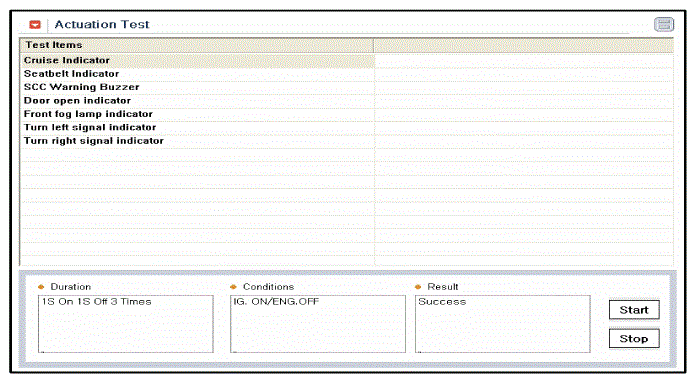

If you will check the cluster operation forcefully, select "Actuation test".

Fig 2: Display - Cluster System Actuation Test
Courtesy of HYUNDAI MOTOR AMERICA

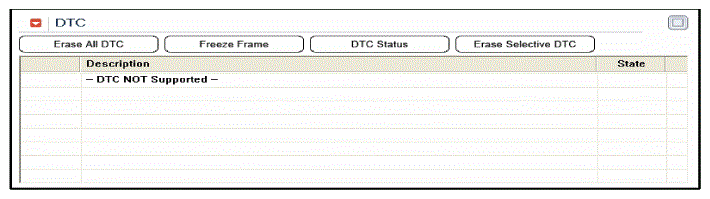

To check the DTC of the each module, select "Diagnostic trouble codes"

Fig 3: Display - DTC Module
