Block Diagrams

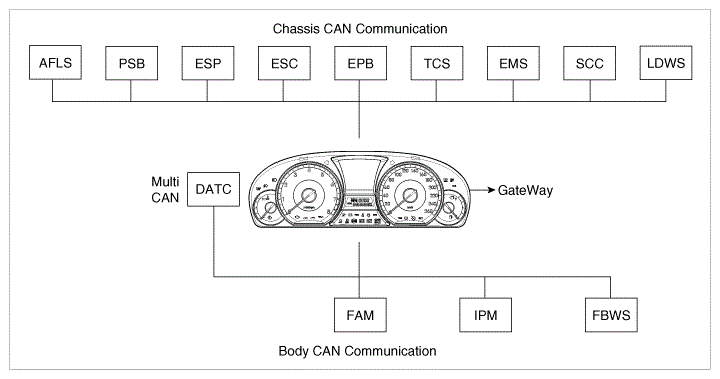

Fig 1: Body And Chassis CAN Communication Block Diagram (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Body And Chassis CAN Communication Block Diagram (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

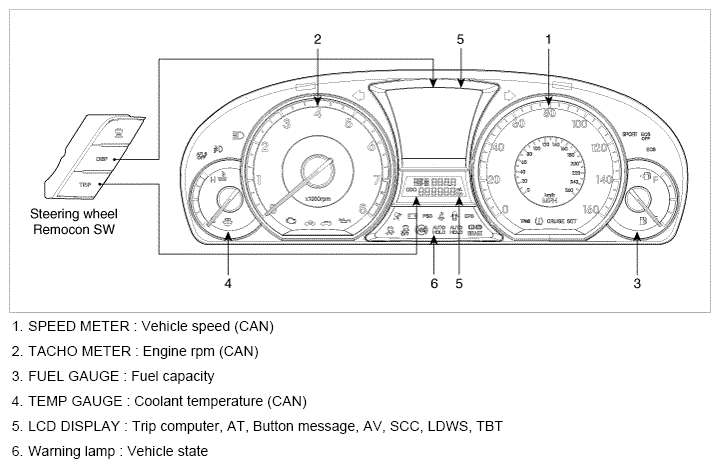

Component

1. Warning Buzzer
2. 3.5" TFT LCD Display Screen
3. Trip Computer

Functions

1. Instrument Panel Warning Indicator Control (direct control and CAN signal input control)
2. Buzzer Function Integration
3. Trip Computer Control
4. Warning Message Display Control
5. Turn by turn Navigation
6. CAN Communication IC (body electrical CAN & power train CAN gate)
