Components and Components Location: Components

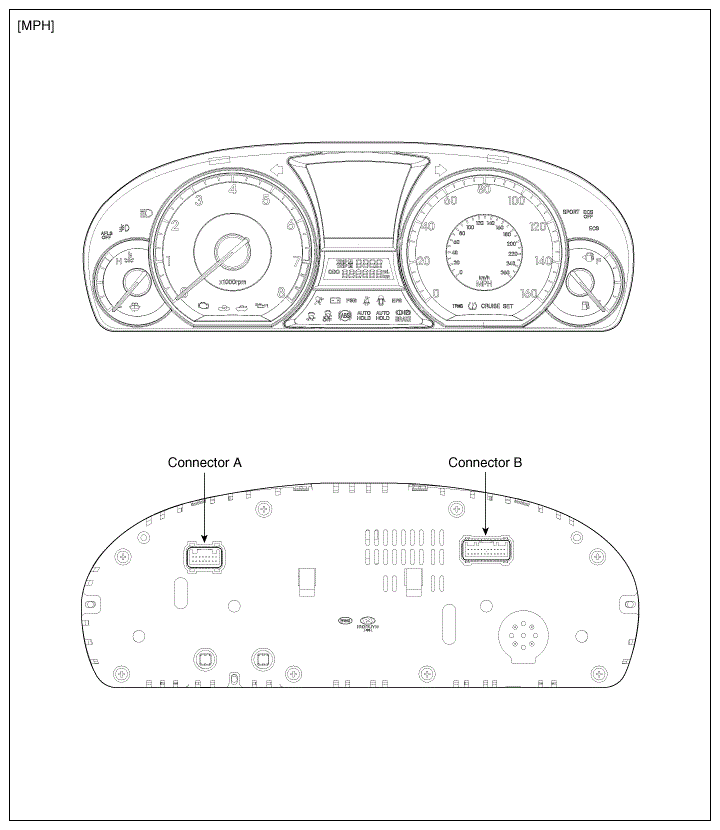

Fig 1: Identifying Instrument Cluster Connector (1 Of 2)
G08831514Courtesy of HYUNDAI MOTOR AMERICA

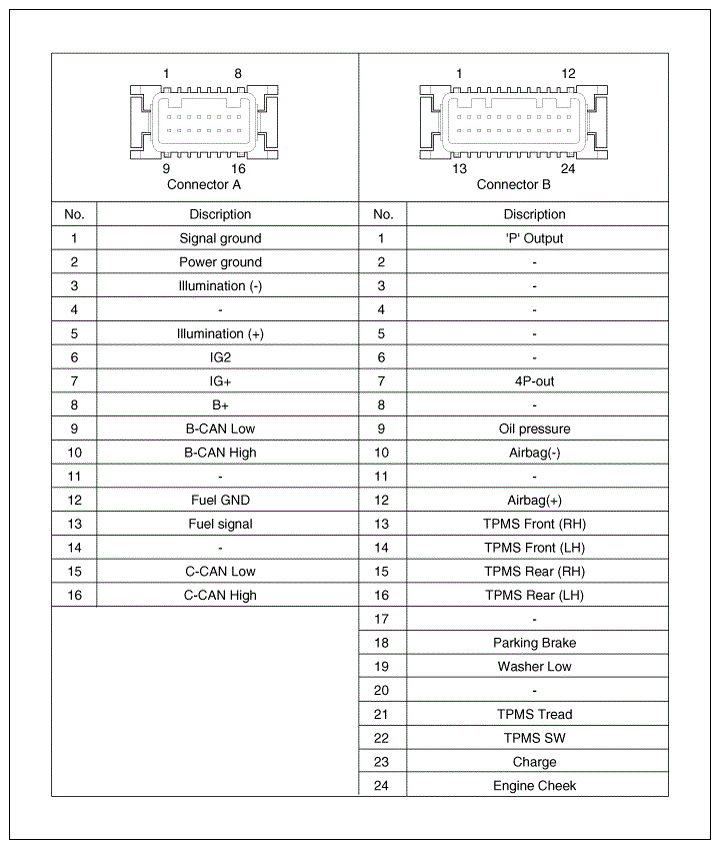

Fig 2: Identifying Instrument Cluster Connector (2 Of 2)
G08831515Courtesy of HYUNDAI MOTOR AMERICA
