OEM Connector End Views (Door Harness) -- (MD)
>>
Connector End Views
>>
Rear Power Window Switch RH Connector End View
Rear Power Window Switch RH Connector End View

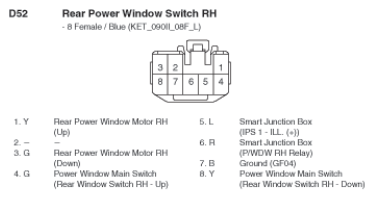

Fig 1: Rear Power Window Switch RH Connector End View (D52)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
