Rear Power Window Switch LH Connector End View

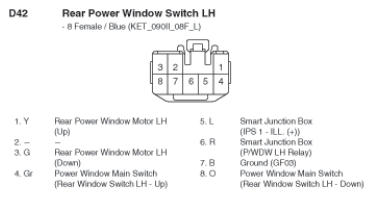

Fig 1: Rear Power Window Switch LH Connector End View (D42)

G10730743

Courtesy of HYUNDAI MOTOR AMERICA
