Power Window Main Switch Connector End View

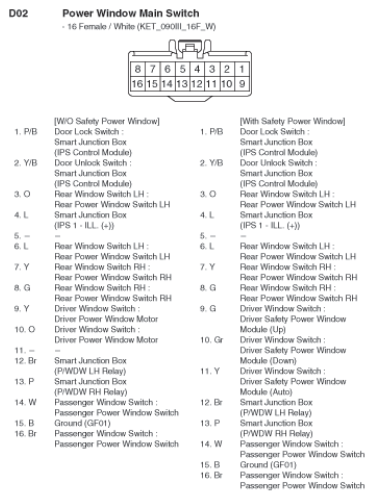

Fig 1: Power Window Main Switch Connector End View (D02)

G10730724

Courtesy of HYUNDAI MOTOR AMERICA
