OEM Connector End Views (Door Harness) -- (MD)
>>
Connector End Views
>>
Driver Safety Power Window Module Connector End View
Driver Safety Power Window Module Connector End View

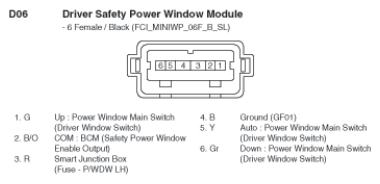

Fig 1: Driver Safety Power Window Module Connector End View (D06)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
