Repair procedures: Removal

CAUTION:

Remove the following items.
1. Rear seat
  (Refer to the "REAR SEAT ")
2. Rear pillar trim
  (Refer to the "INTERIOR TRIM ")
3. Rear door scuff trim
  (Refer to the "INTERIOR TRIM ")
4. Luggage partition trim
  (Refer to the "INTERIOR TRIM ")
5. Rear wheel house trim
  (Refer to the "INTERIOR TRIM ")
6. Package tray trim
  (Refer to the "INTERIOR TRIM ")
7. Rear window glass heater connector
  (Refer to the REAR GLASS DEFOGGER )
Spread the WD-40 on the side of rear window glass.

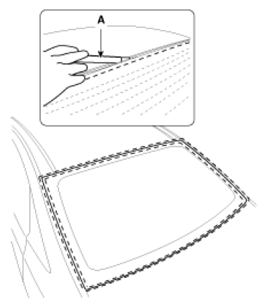

Cut out the adhesive using the cutter (A).
NOTE:
- Please use the cutter with a blade length between 8-12 inches.
Fig 1: Cutting Out Adhesive
Courtesy of HYUNDAI MOTOR CO.

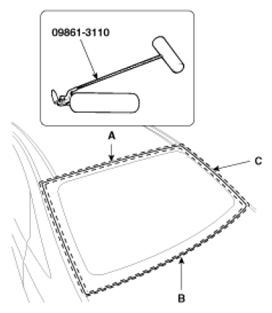

Enough on the upper (A) and lower (B) side (C) of rear window glass. and then cut out the adhesive using the cutter tool (09861-31100).

Fig 2: Cutting Out Adhesive Using Cutter Tool
Courtesy of HYUNDAI MOTOR CO.
Remove the rear window glass (A).
NOTE:
- When removing and installing the rear window glass, an assistant is necessary.
Fig 3: Rear Window Glass
Courtesy of HYUNDAI MOTOR CO.
