Package Tray Trim Replacement

CAUTION:

Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear seat assembly.
(Refer to the "REAR SEAT ")
Remove the rear door scuff trim.
Using a screwdriver or remover, remove the rear pillar trim (A).

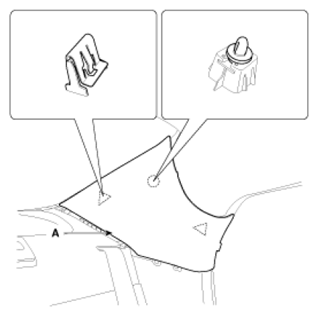

Fig 1: Rear Pillar Trim
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screws and clips, then remove the luggage partition trim (A).

Fig 2: Luggage Partition Trim
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver or remover, remove the rear wheel house trim (A).

Fig 3: Rear Wheel House Trim
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 4: Package Tray Connector
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver or remover, remove the package tray trim (A).

Fig 5: Package Tray Trim
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
- Make sure the connector is connected properly.
