Cowl Side Trim Replacement

CAUTION:

Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front door scuff trim.
Remove the hood latch release handle.
(Refer to the "HOOD ")
Detach the clips, then remove the cowl side trim (A).

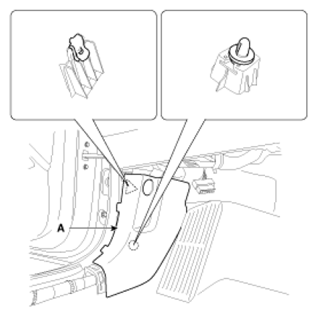

Fig 1: Cowl Side Trim & Clips
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
