Glove Box Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

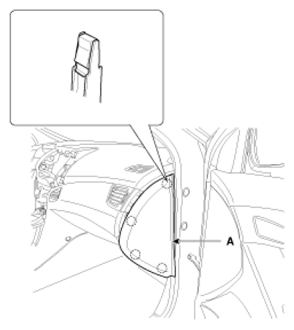

Using a screwdriver or remover, remove the crash pad side cover (A).

Fig 1: Crash Pad Side Cover
Courtesy of HYUNDAI MOTOR CO.

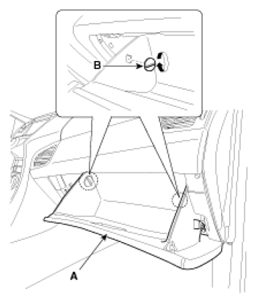

Disconnect the guide (B) from the glove box (A).

Fig 2: Glove Box & Guide
Courtesy of HYUNDAI MOTOR CO.
Disconnect the lift (A) from the glove box (B).

Fig 3: Glove Box & Lift
Courtesy of HYUNDAI MOTOR CO.

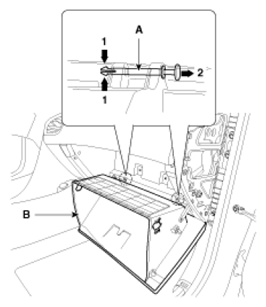

Disconnect the pin (A) and then remove the glove box (B).

Fig 4: Disconnecting Pin And Removing Glove Box
Courtesy of HYUNDAI MOTOR CO.

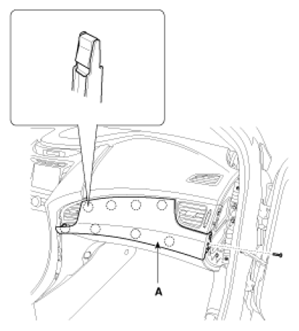

After loosening the mounting screw, then remove the center crash pad passenger's panel (A).

Fig 5: Center Crash Pad Passenger Panel
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screws and bolts, then remove the glove box housing (A).

Fig 6: Glove Box Housing & Mounting Screws And Bolts
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
