Crash Pad Lower Panel Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the crash pad side cover (A).

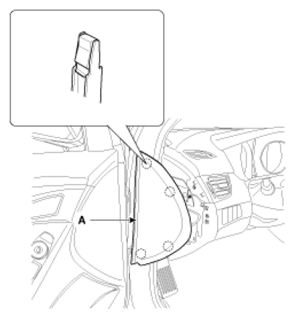

Fig 1: Crash Pad Side Cover
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver or remover, remove the relay box cover (A).

Fig 2: Relay Box Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 3: Crash Pad Lower Panel Connector
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screws, then remove the crash pad lower panel (A).

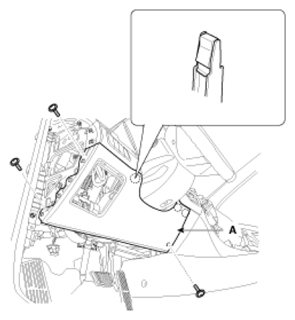

Fig 4: Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
