Cowl Cross Bar Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items.
1. Front seat
  (Refer to the "FRONT SEAT ")
2. Floor console assembly
  (Refer to the "CONSOLE ")
3. Cowl top cover
  (Refer to the "COWL TOP COVER ")
4. Main crash pad
Disconnect the blower unit connectors.
(Refer to the BLOWER UNIT )
Disconnect the multi box connectors.
[Driver's]

Fig 1: Multi Box Connectors (Driver)
Courtesy of HYUNDAI MOTOR CO.
Disconnect the multi box connectors.
[Passenger's]

Fig 2: Multi Box Connectors (Passenger)
Courtesy of HYUNDAI MOTOR CO.
Disconnect the passenger compartment junction box connectors.

Fig 3: Passenger Compartment Junction Box Connectors
Courtesy of HYUNDAI MOTOR CO.
Disconnect the airbag control module (SRSCM) connectors (A).

Fig 4: Airbag Control Module (SRSCM) Connectors
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A) and the mounting clips in the front pillar.
[Driver's]

Fig 5: Connector (Driver)
Courtesy of HYUNDAI MOTOR CO.

[Passenger's]

Fig 6: Connector (Passenger)
Courtesy of HYUNDAI MOTOR CO.

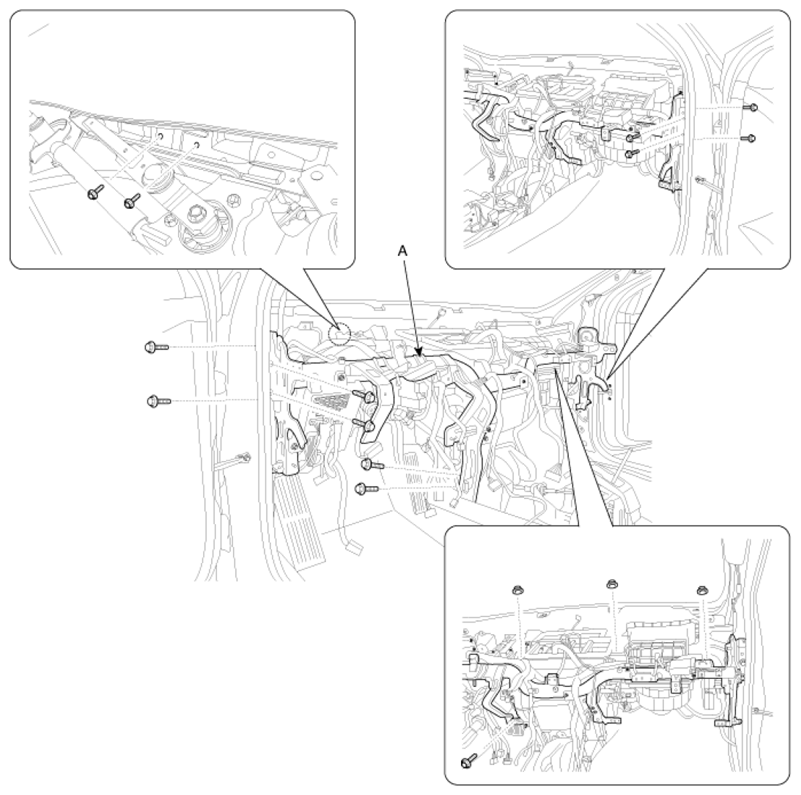

After loosening the mounting bolts and nuts, then remove the cowl cross bar assembly (A).

Fig 7: Cowl Cross Bar Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
