Cluster Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the cluster fascia upper panel (A).

Fig 1: Cluster Fascia Upper Panel
Courtesy of HYUNDAI MOTOR CO.

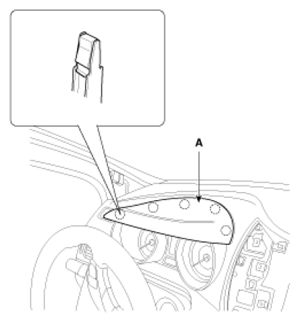

Using a screwdriver or remover, remove the shroud upper cover (A).

Fig 2: Shroud Upper Cover
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screws, then remove the cluster assembly (A).

Fig 3: Cluster Assembly
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 4: Cluster Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
