Audio assembly Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the crash pad center garnish (A).

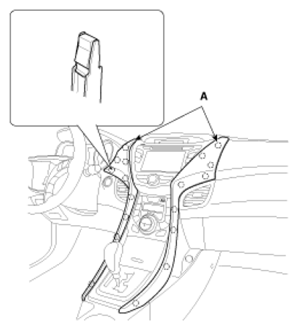

Fig 1: Crash Pad Center Garnish
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screws, then remove the center fascia panel (A).

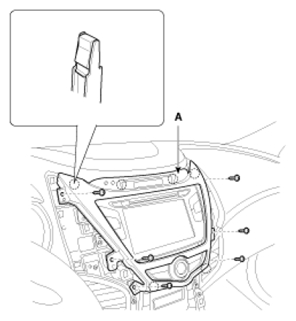

Fig 2: Center Fascia Panel
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 3: Center Fascia Panel Connector
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screws, then remove the audio assembly (A).

Fig 4: Audio Assembly
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors.

Fig 5: Audio Assembly Connectors
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
