[Super vision]

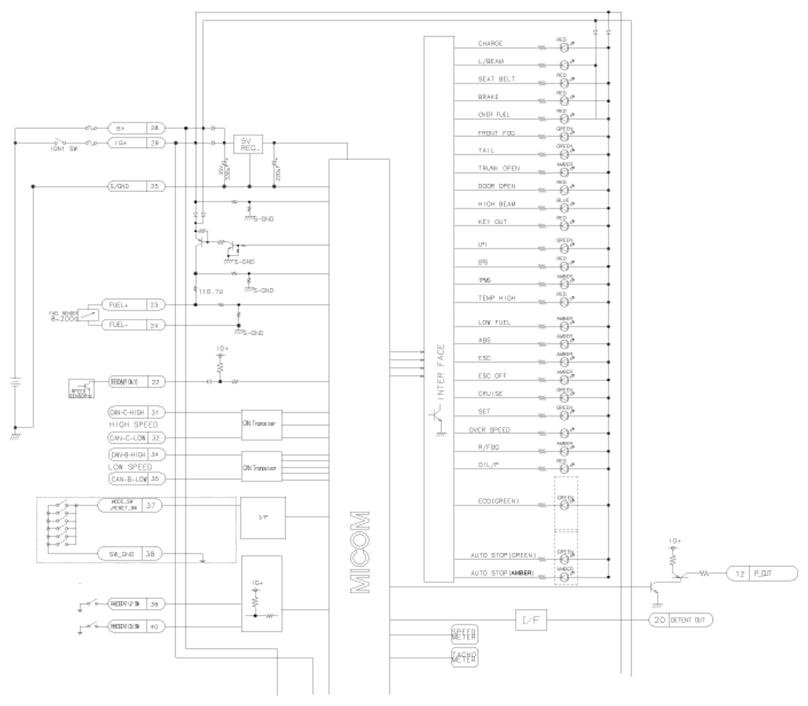

Fig 1: Instrument Cluster (Super Vision) - Circuit Diagram (1 Of 2)
G07256691Courtesy of HYUNDAI MOTOR CO.

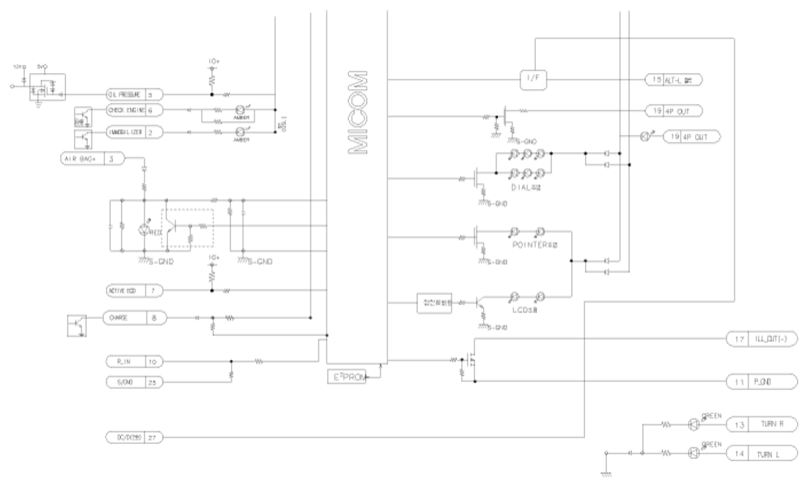

Fig 2: Instrument Cluster (Super Vision) - Circuit Diagram (2 Of 2)
G07256692Courtesy of HYUNDAI MOTOR CO.
