Circuit Diagram: [General]

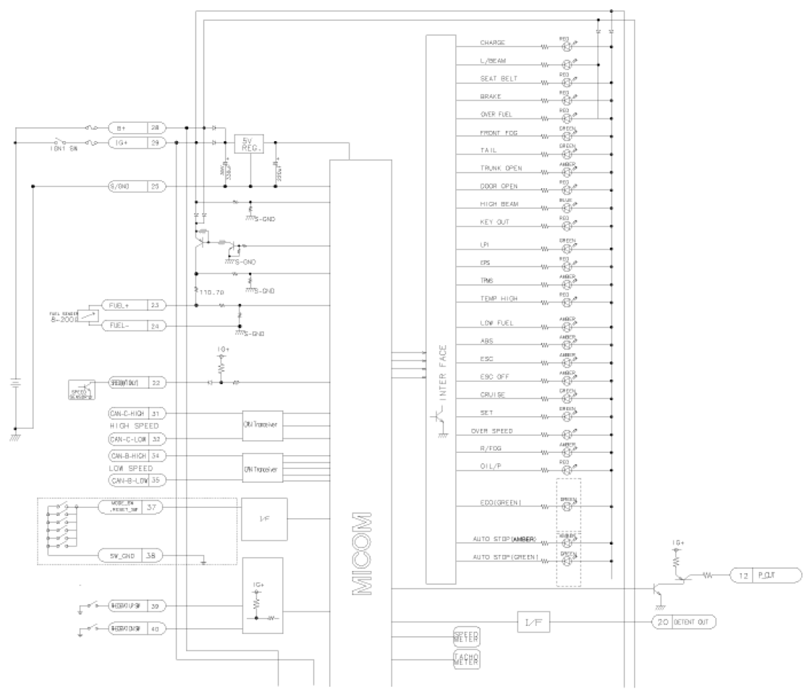

Fig 1: Instrument Cluster (General) - Circuit Diagram (1 Of 2)
G07256693Courtesy of HYUNDAI MOTOR CO.

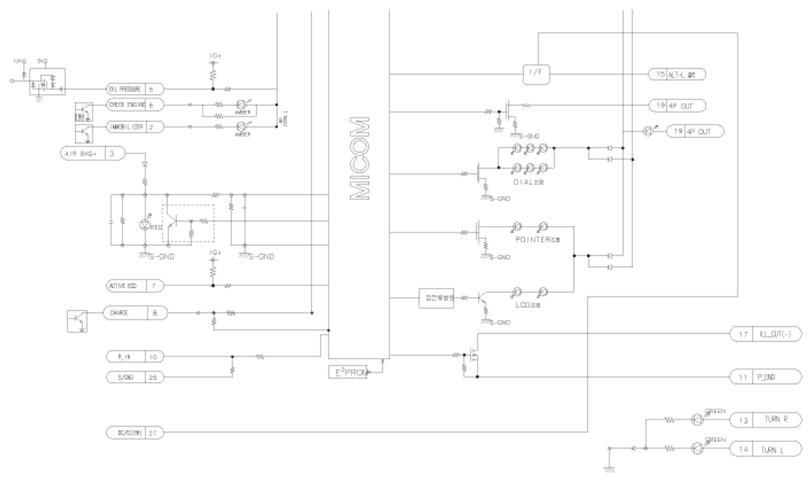

Fig 2: Instrument Cluster (General) - Circuit Diagram (2 Of 2)
G07256694Courtesy of HYUNDAI MOTOR CO.
