Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

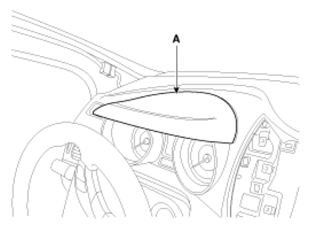

Remove the cluster fascia upper panel (A).

Fig 1: Identifying Cluster Fascia Upper Panel
Courtesy of HYUNDAI MOTOR CO.

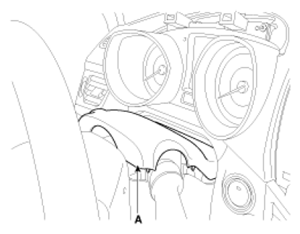

Remove the upper shroud (A) with moving down the steering wheel.

Fig 2: Identifying Upper Shroud
Courtesy of HYUNDAI MOTOR CO.

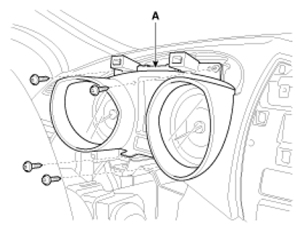

Remove the cluster (A) after loosening 4 screws and disconnecting a connector (B).

Fig 3: Identifying Cluster
Courtesy of HYUNDAI MOTOR CO.

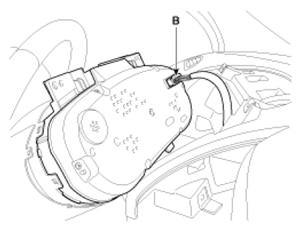

Fig 4: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
