Components and Components Location: Components

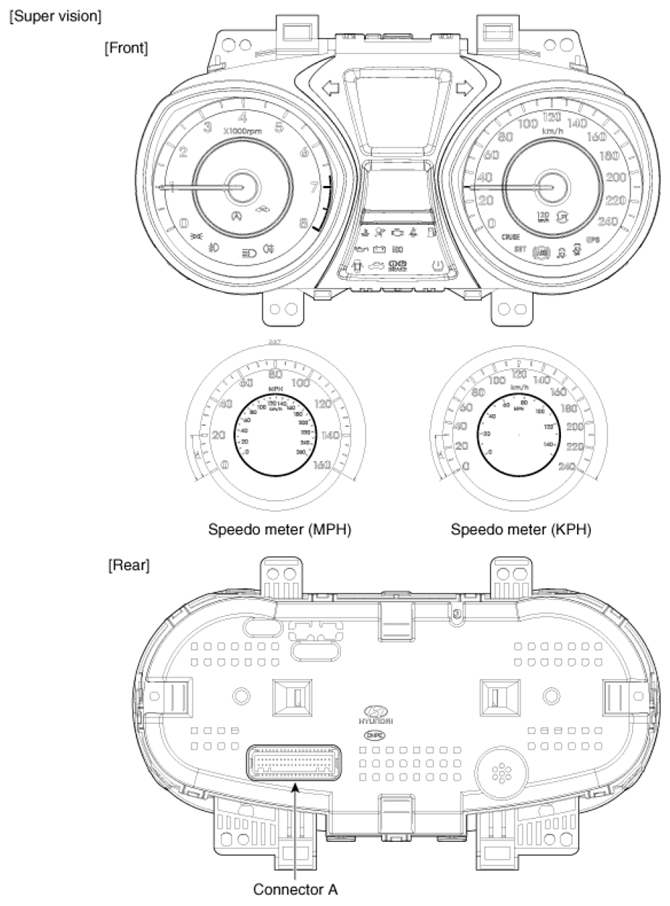

Fig 1: Identifying Instrument Cluster Components (1 Of 3)

Courtesy of HYUNDAI MOTOR CO.

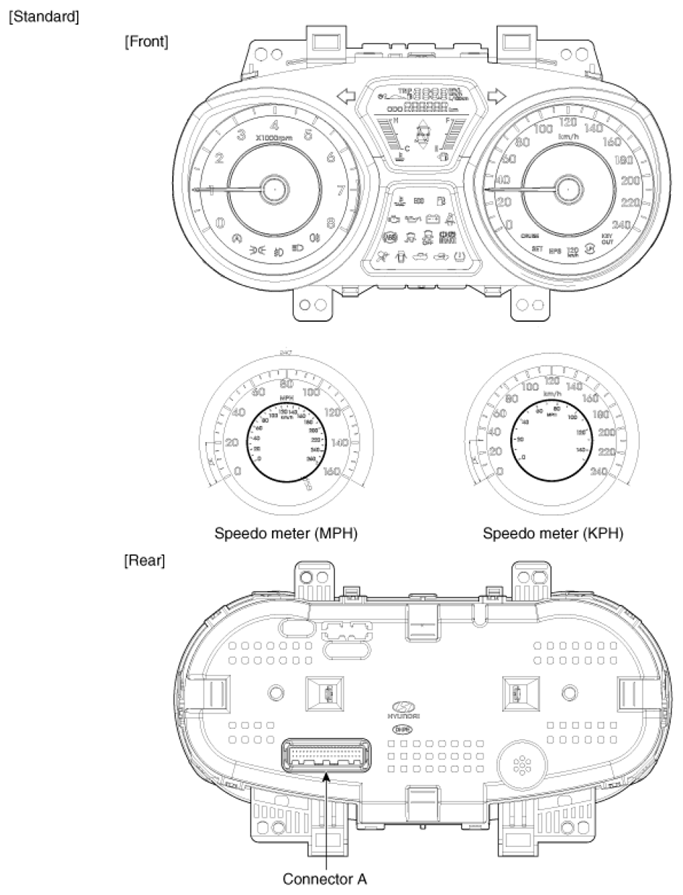

Fig 2: Identifying Instrument Cluster Components (2 Of 3)

Courtesy of HYUNDAI MOTOR CO.

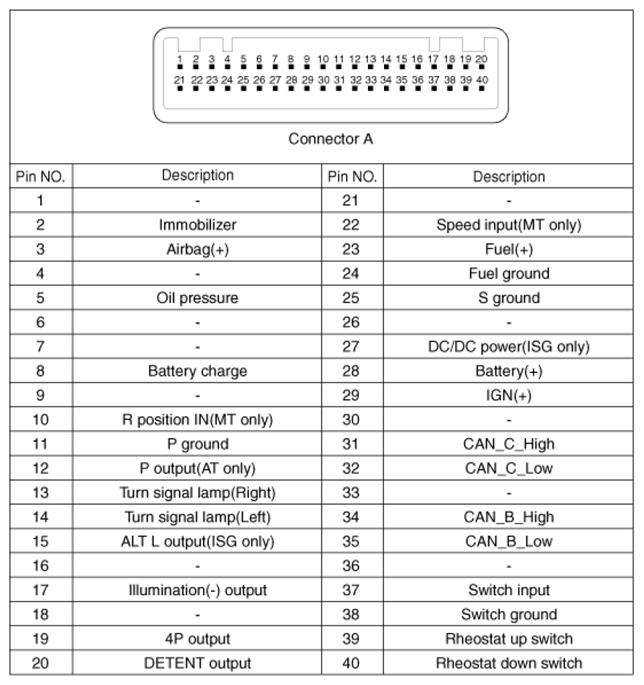

Fig 3: Identifying Instrument Cluster Components (3 Of 3)

Courtesy of HYUNDAI MOTOR CO.
