Electrical Diagrams

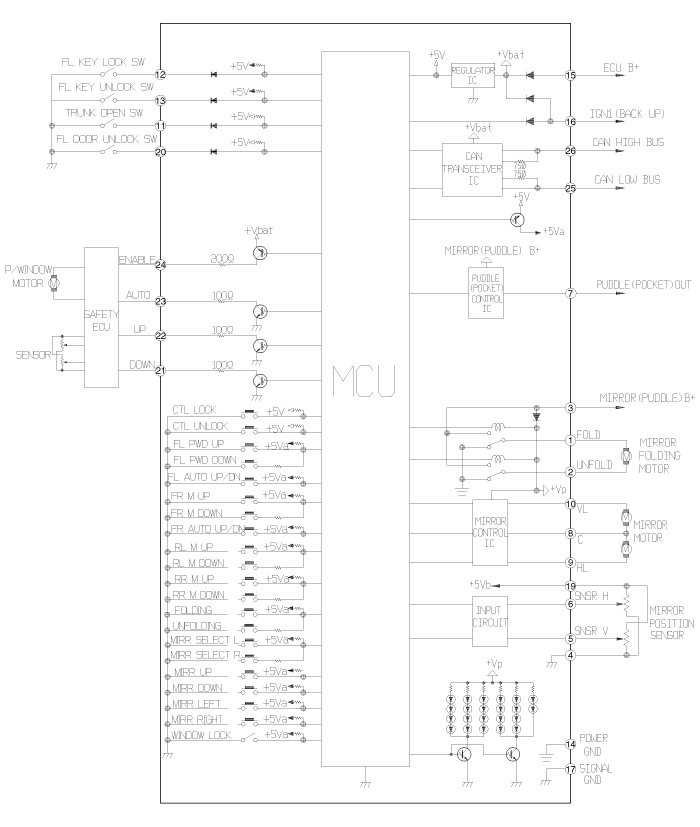

Circuit Diagram

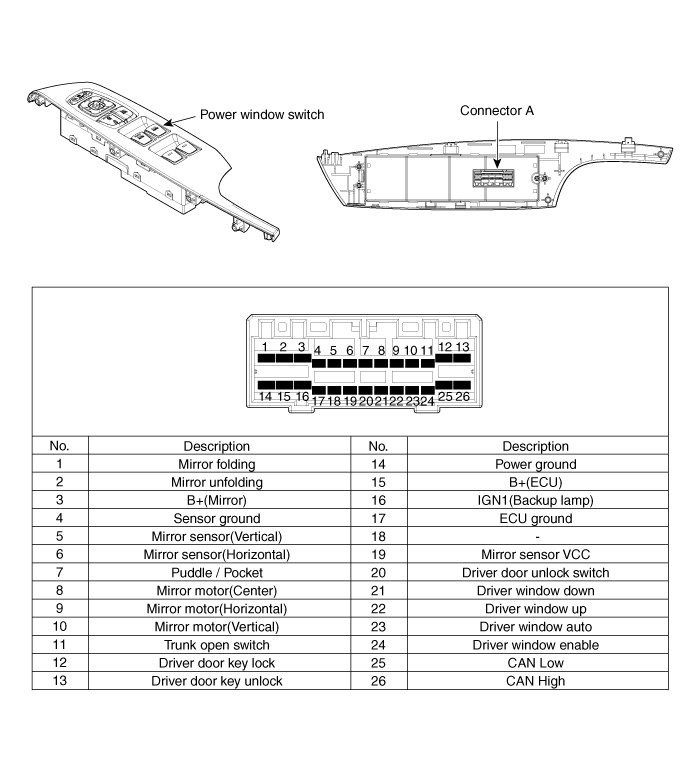

Driver Power Window Switch (1)





Driver Power Window Switch (2)

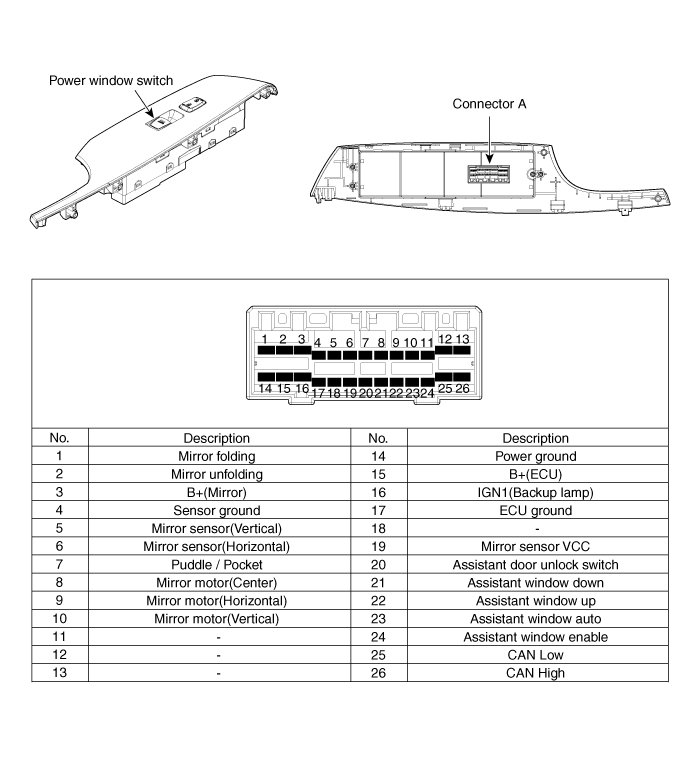

Passenger Power Window Switch

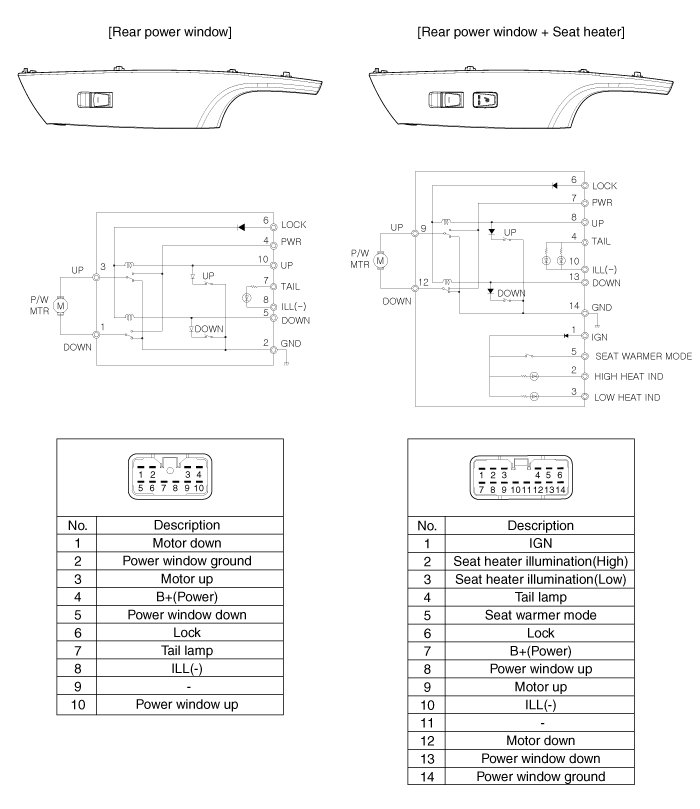

Rear Power Window Switch
